09061487901 HARTING

Symbol Micros: Z 09061487901

365504

Z 09061487901

Contractor Symbol:

Case : Rys.09061487901

Datasheet

Technical drawing Add to favourites

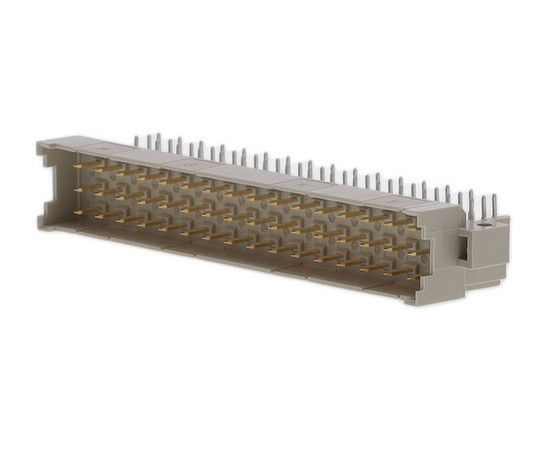

DIN-Power F048MS-3,0C1-3, żeńskie, 48 poles Pitch 5,08, with flange

Parameters

Connector type:	F
Number of pins:	48
Terminal pitch:	5,08mm
Connector:	Plug
Spatial orientation:	Angled

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Connector type:	F
Number of pins:	48
Terminal pitch:	5,08mm
Connector:	Plug
Spatial orientation:	Angled
