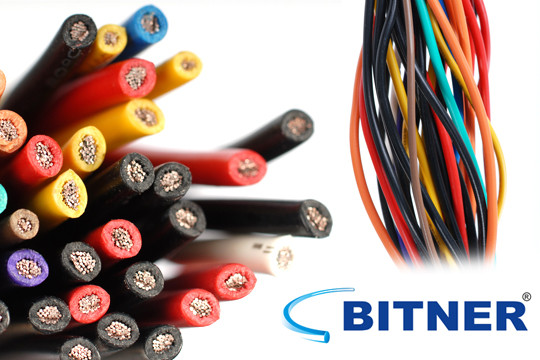

BITNER cables - proven quality

2021-12-15

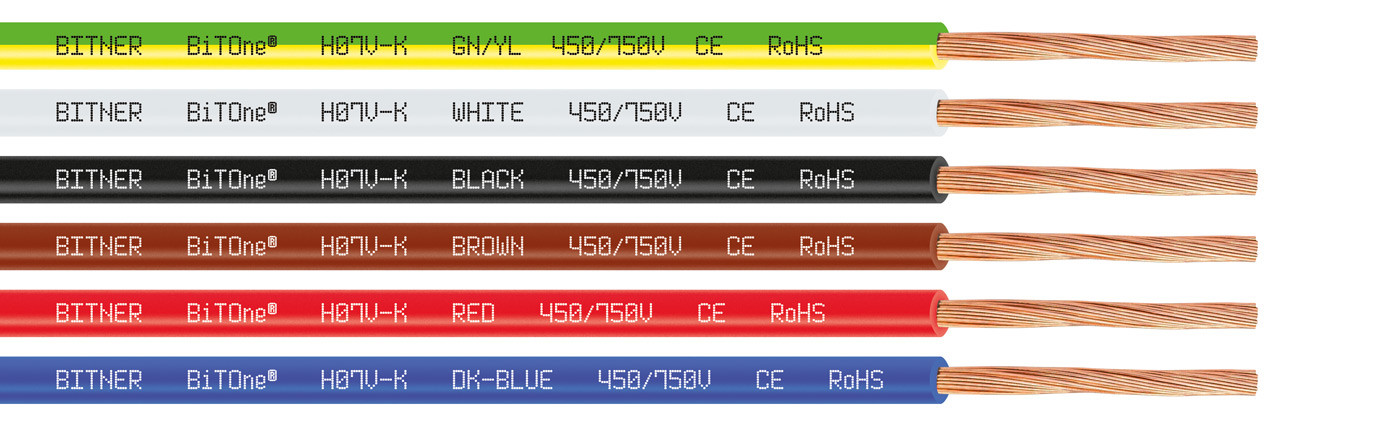

Our offer includes flexible single-conductor cables with PVC insulation, according to EN 50525-2-31 by Bitner, with operating voltage of 300/500V or 450/750V.

SYMBOL DESCRIPTION

K IG2000.05

 Wire; BiTOne; stranded; Cu; 1,5mm2; red; PVC; 450/750V; 100m

K IG2001.03

 Wire; BiTOne; stranded; Cu; 2,5mm2; black; PVC; 450/750V; 100m

K IG2050.03

 Wire; BiTOne; stranded; Cu; 0,5mm2; black; PVC; 300/500V; 100m

K IG2050.05

 Wire; BiTOne; stranded; Cu; 0,5mm2; red; PVC; 300/500V; 100m

K IG2050.06

 Wire; BiTOne; stranded; Cu; 0,5mm2; blue; PVC; 300/500V; 100m

K IG2050.07

 Wire; BiTOne; stranded; Cu; 0,5mm2; green; PVC; 300/500V; 100m

K IG2050.09

 Wire; BiTOne; stranded; Cu; 0,5mm2; brown; PVC; 300/500V; 100m

K IG2050.10

 Wire; BiTOne; stranded; Cu; 0,5mm2; white; PVC; 300/500V; 100m

K IG2050.11

 Wire; BiTOne; stranded; Cu; 0,5mm2; yellow; PVC; 300/500V; 100m

K IG2050.13

 Wire; BiTOne; stranded; Cu; 0,5mm2; yellow-green; PVC; 300/500V

K IG2050.44

 Wire; BiTOne; stranded; Cu; 0,5mm2; dark blue; PVC; 300/500V

K IG2051.05

Wire; BiTOne; stranded; Cu; 0,75mm2; red; PVC; 300/500V; 100m

K IG2052.03

Wire; BiTOne; stranded; Cu; 0,75mm2; red; PVC; 300/500V; 100m

K IG2052.05

 Wire; BiTOne; stranded; Cu; 1mm2; red; PVC; 300/500V; 100m

K IG2052.08

 Wire; BiTOne; stranded; Cu; 1mm2; violet; PVC; 300/500V; 100m

K IG2052.13

 Wire; BiTOne; stranded; Cu; 1mm2; yellow-green; PVC; 300/500V; 100m
  BiTOne® 450/750V BiTOne® 300/500V
Cable type: Control/signalling cable
Operating voltage: 450/750V 300/500V
Voltage test: for cross section ≤ 1. 0mm2 50Hz: 2000V
for cross section ≥ 1,5mm2 50Hz: 2500V
 Insulation resistance: 20MΩxkm

Operating temperature:

 Fixed installation: -40℃ to 80℃
Laying Conditions:
 		 Indoor cable
Flexible and vibration-resistant connections
Min. laying temperature: -5℃
Environmental Resistance:
 		 No spreading of flame on single cable
Certificates / Approvals / Approvals:
 		 CPR - Certificates / DoP
Conductor material: copper conductors
Conductor Structure:  Class 5 (acc. to EN 60228, IEC 60228)
