Relpol Signal relays (results: 14)
| Product | Cart |
AC contact current
|
Coil power
|
Coil voltage type [AC, DC]
|
Coil voltage (V)
|
Contacts configuration
|
Contact voltage
|
DC contact current
|
Dimensions
|
Manufacturer
|
Mounting
|
Operating temperature (range)
|
||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RSM822-6112-85-S012 subminiature signal relay, monostable
2A; 12V; DPDT; Coil power 200mW; 21,0 x 10,1 x 12,1mm; IP64 PCB; Equivalent: AZ822, JRC-27F, V23102/V23105, G5V-2, 30.22
|
||||||||||||||||||||||||
Rys.RSM822
|
In stock:
138 pcs. |
|||||||||||||||||||||||
|
Packaging: 20/100/300 Quantity (multiple 1) |
1A | 200mW | DC | 12V | DPDT | 120VAC/24VDC | 2A | 21,0 x 10,1 x 12,1mm | RELPOL, ZETTLER | PCB | -30°C ~ 80°C | ||||||||||||
|
RSM954-0111-85-1012 subminiature signal relay, monostable
3A; 12V; SPDT; Coil power 360mW; 15,4 x 10,4 x 11,4mm; IP64 PCB; Equivalent: AZ954
|
||||||||||||||||||||||||

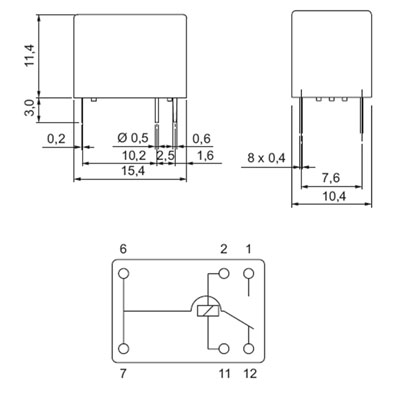

Rys.RSM954p
|
In stock:
32 pcs. |
|||||||||||||||||||||||
|
Packaging: 16/32 Quantity (multiple 1) |
3A | 360mW | DC | 12V | SPDT | 120VAC/60VDC | 3A | 15,4 x 10,4 x 11,4mm | RELPOL, ZETTLER | PCB | -25°C ~ 55°C | ||||||||||||
|
In stock:
0 pcs. |
||||||||||||||||||||||||
|
Packaging: 32/128/256 Quantity (multiple 1) |
3A | 360mW | DC | 12V | SPDT | 120VAC/60VDC | 3A | 15,4 x 10,4 x 11,4mm | RELPOL, ZETTLER | PCB | -25°C ~ 55°C | ||||||||||||
|
RSM957-0111-85-S005 subminiature signal relay, monostable
2A; 5V; SPDT; Coil power 150mW; 12,6 x 7,8 x 10,0mm; IP64 PCB; Equivalent: AZ957
|
||||||||||||||||||||||||

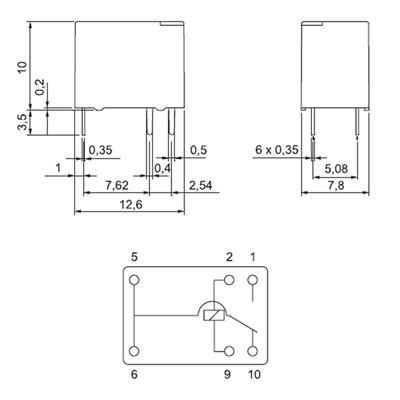

Rys.RSM957p
|
In stock:
109 pcs. |
|||||||||||||||||||||||
|
Packaging: 20 Quantity (multiple 1) |
2A | 150mW | DC | 5V | SPDT | 125VAC/60VDC | 2A | 12,6 x 7,8 x 10,0mm | RELPOL, ZETTLER | PCB | -30°C ~ 70°C | ||||||||||||
|
RSM957-0111-85-S012 subminiature signal relay, monostable
2A; 12V; SPDT; Coil power 150mW; 12,6 x 7,8 x 10,0mm; IP64 PCB; Equivalent: AZ957
|
||||||||||||||||||||||||
|
Rys.RSM957p
|
In stock:
116 pcs. |
|||||||||||||||||||||||
|
Packaging: 20 Quantity (multiple 1) |
2A | 150mW | DC | 12V | SPDT | 125VAC/60VDC | 2A | 12,6 x 7,8 x 10,0mm | RELPOL, ZETTLER | PCB | -30°C ~ 70°C | ||||||||||||
|
RSM957N-0111-85-S005 subminiature signal relay, monostable
1A; 5V; SPDT; Coil power 150mW; 12,5 x 7,5 x 10,0mm; IP64 PCB; Equivalent: AZ957
|
||||||||||||||||||||||||

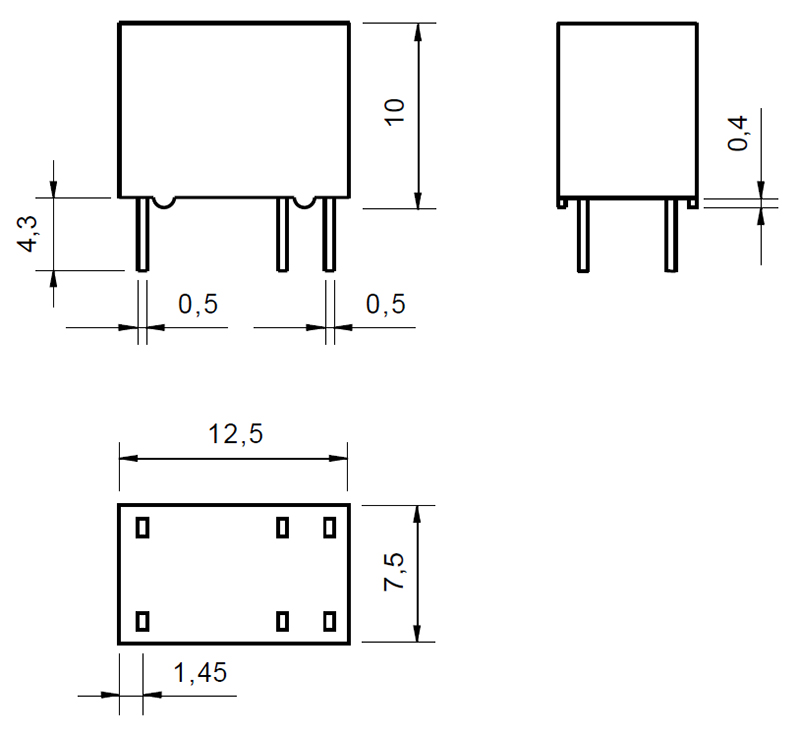

Rys.RSM957N
|
In stock:
1 pcs. |
|||||||||||||||||||||||
|
Packaging: 20/100 Quantity (multiple 1) |
500mA | 150mW | DC | 5V | SPDT | 125VAC/30VDC | 1A | 12,5 x 7,5 x 10,0mm | RELPOL, ZETTLER | PCB | -30°C ~ 70°C | ||||||||||||
|
RSM850-6112-85-1005 subminiature signal relay, monostable
2A; 5V; DPDT; Coil power 150mW; 14,1 x 10,1 x 5,0mm; IP64 PCB; Equivalent: AZ850
|
||||||||||||||||||||||||
Rys.RSM850
|
500mA | 140mW | DC | 5V | DPDT | 125VAC/30VDC | 1A | 14,1 x 10,1 x 5,0mm | RELPOL, ZETTLER | PCB | -40°C ~ 70°C | |||||||||||||
|
|
Item available on a request
|
|||||||||||||||||||||||
|
RSM850-6112-85-1012 subminiature signal relay, monostable
2A; 12V; DPDT, Coil power 150mW; 14,1 x 10,1 x 5,0mm; IP64 PCB; Equivalent: AZ850
|
||||||||||||||||||||||||
|
Rys.RSM850
|
500mA | 140mW | DC | 12V | DPDT | 125VAC/30VDC | 1A | 14,1 x 10,1 x 5,0mm | RELPOL, ZETTLER | PCB | -40°C ~ 70°C | |||||||||||||
|
|
Item available on a request
|
|||||||||||||||||||||||
|
RSM850-6112-85-1024 subminiature signal relay, monostable
2A; 24V; DPDT; Coil power 150mW; 14,1 x 10,1 x 5,0mm; IP64 SMT equivalent: AZ850
|
||||||||||||||||||||||||
|
Rys.RSM850
|
24V | |||||||||||||||||||||||
|
|
Item available on a request
|
|||||||||||||||||||||||
|
RSM850-6112-8M-1005 subminiature signal relay, monostable
2A; 5V; DPDT; 140mW; 14,3 x 9,3 x 5,4mm; AgPd/Au; IP64 SMD
|
||||||||||||||||||||||||
Rys.RSM850 smt
|
5V | |||||||||||||||||||||||
|
|
Item available on a request
|
|||||||||||||||||||||||
|
RSM850-6112-8M-1012 subminiature signal relay, monostable
2A; 12V; DPDT; 140mW; 14,3 x 9,3 x 5,4mm; AgPd/Au; IP64 SMD
|
||||||||||||||||||||||||
|
Rys.RSM850 smt
|
500mA | 140mW | DC | 12V | DPDT | 250VAC/30VDC | 2A | 14,3 x 9,3 x 6,6mm | RELPOL, ZETTLER | SMD | -40°C ~ 85°C | |||||||||||||
|
|
Item available on a request
|
|||||||||||||||||||||||
|
RSM954-0111-85-1024 subminiature signal relay, monostable
3A; 24V; SPDT; Coil power 360mW; 15,4 x 10,4 x 11,4mm; IP64 PCB; quivalent: AZ954
|
||||||||||||||||||||||||
|
Rys.RSM954p
|
3A | 360mW | DC | 24V | SPDT | 120VAC/60VDC | 3A | 15,4 x 10,4 x 11,4mm | RELPOL, ZETTLER | PCB | -25°C ~ 55°C | |||||||||||||
|
|
Item available on a request
|
|||||||||||||||||||||||
|
RSM954N-0111-85-1005 subminiature signal relay, monostable
3A; 5V; SPDT; Coil power 360mW; 15,5 x 11 x 11,5mm; IP64 PCB; Equivalent: AZ954
|
||||||||||||||||||||||||

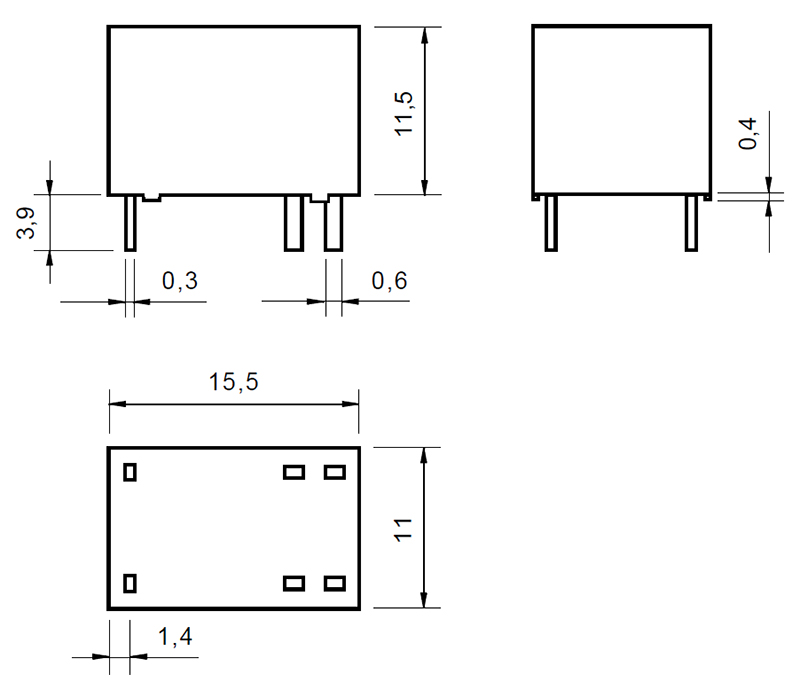

Rys.RSM954N
|
3A | 360mW | DC | 5V | SPDT | 125VAC/30VDC | 3A | 15,5 x 11 x 11,5mm | RELPOL, ZETTLER | PCB | -25°C ~ 55°C | |||||||||||||
|
|
Item available on a request
|
|||||||||||||||||||||||
|
RSM822N-2112-85-S024 subminiature signal relay, monostable
2A; 24V; DPDT; coil power 0,2W; 20,5 x 10,2 x 12,5mm SMT
|
||||||||||||||||||||||||

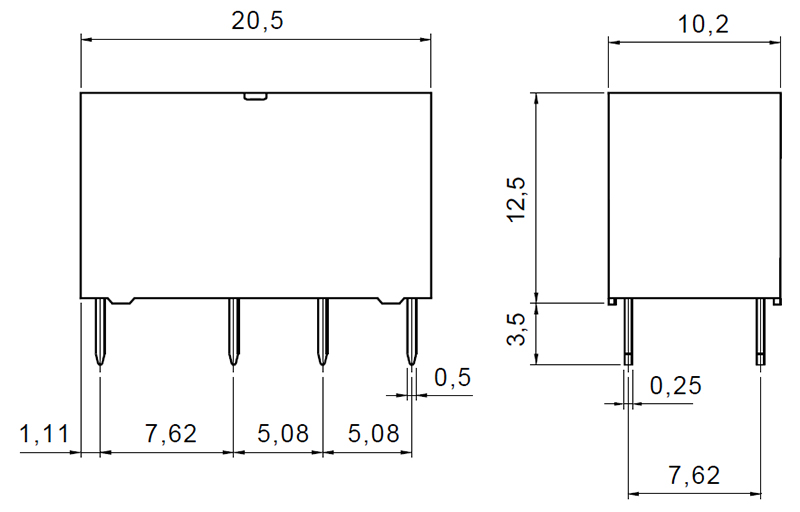

Rys.RSM822N
|
24V | |||||||||||||||||||||||
|
|
Item available on a request
|
|||||||||||||||||||||||
|
RSM957N-0111-85-S012 subminiature signal relay, monostable
1A; 12V; SPDT; Coil power 150mW; 12,5 x 7,5 x 10,0mm; IP64 SMT equivalent: AZ957
|
||||||||||||||||||||||||
Rys.RSM957N
|
12V | |||||||||||||||||||||||
|
|
Item available on a request
|
|||||||||||||||||||||||
