Interface modules and devices (results: 20)
| Product | Cart | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MP-1W-2408
TTL digital I/O module based on the DS2408 chip, using the 1-Wire standard, screw-type connector Unique serial number (via DS2408), 5V power supply
|
|||||||||||||
Rys.MP-1W-2408
|
In stock:
1 pcs. |
||||||||||||
|
Packaging: 2 Quantity (multiple 1) |
||||||||||||
|
MP00101
USB-to-RS232 (TTL) converter module based on the FT232RL chip, 10-pin output 3Mb/s, USB Type-B female connector, USB-powered, Vext 3.3/5V, 2 LEDs
|
|||||||||||||
Rys.MP00101
|
In stock:
2 pcs. |
||||||||||||
|
Packaging: 2 Quantity (multiple 1) |
||||||||||||
|
MP00102A
USB-to-RS232 (TTL) converter based on the FT232RL chip, DB9M output 230kb/s, USB Type-B female connector, USB-powered, 2 LEDs
|
|||||||||||||
Rys.MP00102A
|
In stock:
2 pcs. |
||||||||||||
|
Packaging: 2 Quantity (multiple 1) |
||||||||||||
|
MP00112
USB-to-RS232 (TTL) converter based on the FT232RL chip with galvanic isolation, DB9M output 230kb/s, USB Type-B female connector, USB-powered, 8 LEDs
|
|||||||||||||
Rys.MP00112
|
In stock:
1 pcs. |
||||||||||||
|
Packaging: 2 Quantity (multiple 1) |
||||||||||||
|
MP00204-P
1-Wire to RS232 interface based on the DS2480B chip, DB9 female connector, RJ45 socket External power supply 7÷12V (regulated), max. current consumption 27mA
|
|||||||||||||
Rys.MP00204-P
|
In stock:
2 pcs. |
||||||||||||
|
Packaging: 2 Quantity (multiple 1) |
||||||||||||
|
MP00204-USB
1-Wire to USB interface based on FT232RL and DS2480B chips, RJ45 socket External power supply 7÷12V (regulated), max. current consumption 7mA
|
|||||||||||||
Rys.MP00204-USB
|
In stock:
1 pcs. |
||||||||||||
|
Packaging: 2 Quantity (multiple 1) |
||||||||||||
|
MP00311-RS232
Panel-mount LED display, 4 digits (14 mm high), RS232-controlled Display color: red (or green), 5V power supply, max. current consumption: 530mA
|
|||||||||||||
Rys.MP00311-RS232
|
In stock:
2 pcs. |
||||||||||||
|
Packaging: 2 Quantity (multiple 1) |
||||||||||||
|
MP00801
Galvanic isolator for RS232 serial port, DB9 female input, DB9 male output 116kb/s, Half-Duplex/Full-Duplex, 5V/500mA power supply, 5 LEDs
|
|||||||||||||
Rys.MP00801
|
In stock:
2 pcs. |
||||||||||||
|
Packaging: 2 Quantity (multiple 1) |
||||||||||||
|
MP01105T
Interface module for 1-Wire temperature measurement, RJ45 socket Supports up to 50 DS18B20-type sensors, 7÷12V power supply, max. current consumption 30mA
|
|||||||||||||
Rys.MP01105T
|
In stock:
1 pcs. |
||||||||||||
|
Packaging: 1 Quantity (multiple 1) |
||||||||||||
|
MP01501A-DMX512
USB-to-DMX512 standard converter based on the FT232RL chip Supports up to 512 DMX devices, USB Type B female connector, 2 LEDs
|
|||||||||||||
Rys.MP01501A-DMX512
|
In stock:
1 pcs. |
||||||||||||
|
Packaging: 1 Quantity (multiple 1) |
||||||||||||
|
MP01502A
USB-to-RS485 converter based on the FT232RL chip, 4-wire interface 2.5Mb/s, Full-Duplex, USB Type B female connector, USB power, 2 LEDs
|
|||||||||||||
Rys.MP01502A
|
In stock:
1 pcs. |
||||||||||||
|
Packaging: 2 Quantity (multiple 1) |
||||||||||||
|
MP01610
RFID interface based on the EM4095 chip, PCB with prototyping area, integrated antenna Range approx. 12cm (ISO card), compatible with Unique transponders, 5V power supply
|
|||||||||||||
Rys.MP01610
|
In stock:
2 pcs. |
||||||||||||
|
Packaging: 2 Quantity (multiple 1) |
||||||||||||
|
MP01611
RFID reader module based on the EM4095 chip, integrated antenna, RS232 (TTL) output Range approx. 12 cm (ISO card), reads Unique transponders (125 kHz), 5V power supply
|
|||||||||||||
Rys.MP01611
|
In stock:
2 pcs. |
||||||||||||
|
Packaging: 2 Quantity (multiple 1) |
||||||||||||
|
MP01613
RFID reader based on the EM4095 chip, USB output Range approx. 7 cm (key fobs), reads Unique transponders (125 kHz), USB-powered
|
|||||||||||||
Rys.MP01613
|
In stock:
1 pcs. |
||||||||||||
|
Packaging: 1 Quantity (multiple 1) |
||||||||||||
|
MP00202-iBUTTON
iButton (touch key) reader for USB based on FT232RL and DS2480B chips Unique serial number (DS2401), USB-powered
|
|||||||||||||
Rys.MP00202-iBUTTON
|
|||||||||||||
|
|
Item available on a request
|
||||||||||||
|
MP00202A
1-Wire to USB interface module based on FT232RL and DS2480B chips 1-Wire bus protection (DS9503), unique serial number (DS2401), USB-powered
|
|||||||||||||
Rys.MP00202A
|
|||||||||||||
|
|
Item available on a request
|
||||||||||||
|
MP00206
1-Wire to USB interface based on FT232RL and DS2480B chips, RJ45 socket 1-Wire bus protection (DS9503), unique serial number (DS2401), powered via USB
|
|||||||||||||
Rys.MP00206
|
|||||||||||||
|
|
Item available on a request
|
||||||||||||
|
MP01105T-RS232
Interface for 1-Wire temperature measurement with RS232 output, RJ45 socket Supports up to 8 DS18B20-type sensors, power supply 7÷12V
|
|||||||||||||
Rys.MP01105T-RS232
|
|||||||||||||
|
|
Item available on a request
|
||||||||||||
|
MP01512A
USB-to-RS485 converter based on the FT232RL chip with galvanic isolation, 2-wire interface 500kb/s, Half-Duplex, USB Type-B female connector, USB-powered, 2 LEDs
|
|||||||||||||
Rys.MP01512
|
|||||||||||||
|
|
Item available on a request
|
||||||||||||
|

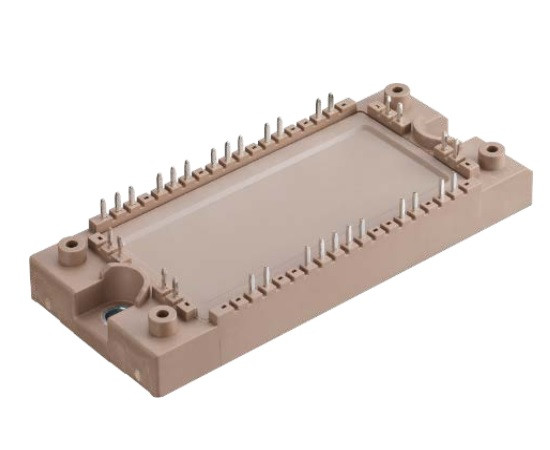

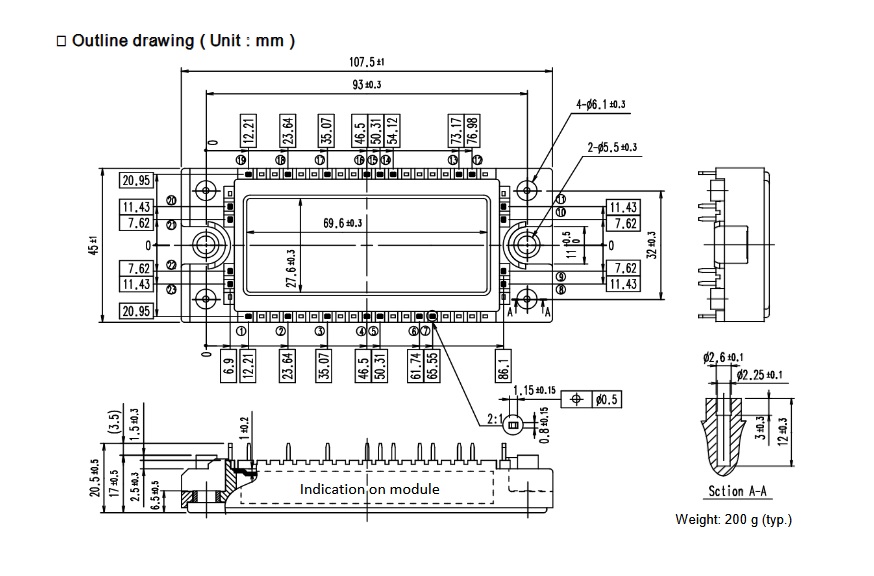

7MBR50XMA-120-50 FUJI ELECTRIC Power Module
Power Module(X series); 1200V / 50A / PIM
|
|||||||||||||
7MBR50XMA120-50
|
|||||||||||||
|
|
Item available on a request
|
||||||||||||
