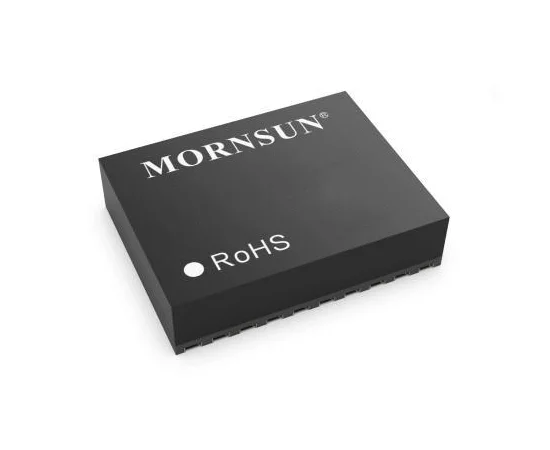

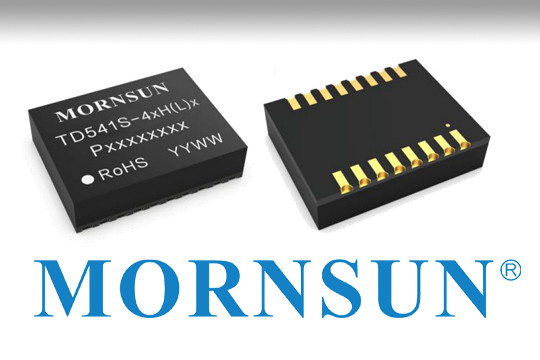

Digital isolators in a miniature DFN type housing from Mornsun
2023-08-29
In our offer we have functional equivalents of Texas Instruments and Analog Devices products.
Characteristics:
- Ultra-small and ultra-thin DFN housing
- Baud rate up to 150Mbps
- Low communication delay
- Integrated 3,3V or 5V isolated power supply
- High isolation - up to 5000VDC
- ESD protection: ±8kV HBM
- High CMTI: 75 kV/μs (typical)
- Industrial operating temperature range: -40℃ to +125℃
Applications:
- Industrial automation systems
- Motor control
- Medical equipment
- Test and measurement devices
- Isolated ADC and DAC
If you want to check current stock and prices, please click on the part number.
| PART NUMBER | DESCRIPTION |
|---|---|
|
|
4-Ch 4/0 Digital Isolator; Output level: High; Vrms 5000V; 150Mbps; 13ns; 4.75V~5.25V; -40°C ~ 125°C; Equivalent: ADUM4400; ADUM6400; ISO7340-Q1; ISO7740; ISOW7840;
|
|
|
4-Ch 4/0 Digital Isolator; Output level: High; Vrms 5000V; 150Mbps; 13ns; 4.75V~5.25V; -40°C ~ 125°C; Equivalent: ADUM4400; ADUM6400; ISO7340-Q1; ISO7740; ISOW7840;
|
|
|
4-Ch 4/0 Digital Isolator; Output level: Low; Vrms 5000V; 150Mbps; 13ns; 4.75V~5.25V; -40°C ~ 125°C; Equivalent: ADUM4400; ADUM6400; ISO7340-Q1; ISO7740; ISOW7840;
|
|
|
4-Ch 4/0 Digital Isolator; Output level: Low; Vrms 5000V; 150Mbps; 13ns; 4.75V~5.25V; -40°C ~ 125°C; Equivalent: ADUM4400; ADUM6400; ISO7340-Q1; ISO7740; ISOW7840;
|
|
|
4-Ch 3/1 Digital Isolator; Output level: High; Vrms 5000V; 150Mbps; 13ns; 4.75V~5.25V; -40°C ~ 125°C; Equivalent: ISOW7841;
|
|
|
4-Ch 3/1 Digital Isolator; Output level: High; Vrms 5000V; 150Mbps; 13ns; 4.75V~5.25V; -40°C ~ 125°C; Equivalent: ISOW7841;
|
|
|
4-Ch 3/1 Digital Isolator; Output level: Low; Vrms 5000V; 150Mbps; 13ns; 4.75V~5.25V; -40°C ~ 125°C; Equivalent: ISOW7841;
|
|
|
4-Ch 3/1 Digital Isolator; Output level: Low; Vrms 5000V; 150Mbps; 13ns; 4.75V~5.25V; -40°C ~ 125°C; Equivalent: ISOW7841;
|
|
|
4-Ch 2/2 Digital Isolator; Output level: High; Vrms 5000V; 150Mbps; 13ns; 4.75V~5.25V; -40°C ~ 125°C; Equivalent: ADUM4402; ADUM6402; ISO7342-Q1; ISO7742; ISOW7842;
|
|
|
4-Ch 2/2 Digital Isolator; Output level: High; Vrms 5000V; 150Mbps; 13ns; 4.75V~5.25V; -40°C ~ 125°C; Equivalent: ADUM4402; ADUM6402; ISO7342-Q1; ISO7742; ISOW7842;
|
|
|
4-Ch 2/2 Digital Isolator; Output level: Low; Vrms 5000V; 150Mbps; 13ns; 4.75V~5.25V; -40°C ~ 125°C; Equivalent: ADUM4402; ADUM6402; ISO7342-Q1; ISO7742; ISOW7842;
|
|
|
4-Ch 2/2 Digital Isolator; Output level: Low; Vrms 5000V; 150Mbps; 13ns; 4.75V~5.25V; -40°C ~ 125°C; Equivalent: ADUM4402; ADUM6402; ISO7342-Q1; ISO7742; ISOW7842;
|
