JGSemi BAR43 Schottky Diodes - Ultra-Fast Switching <5ns

Schottky Diodes - BAR43 Series

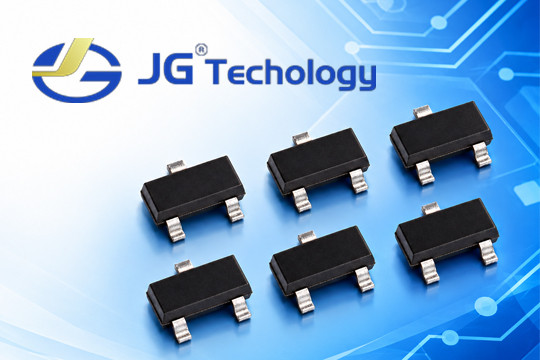

JGSemi BAR43 series Schottky diodes are fast semiconductor diodes designed for electronic applications where short switching times and low power losses are essential. The available models feature a forward current of 0.2A, a voltage rating of 30V, and an ultra-fast switching time of less than 5ns. All variants are available in a compact SOT-23 package.

Key Features:

• Forward current up to 0.2A.
• Maximum reverse voltage of 30V.
• Ultra-fast switching time <5ns.
• Schottky technology for fast switching and low power losses during operation.
• Compact SOT-23 package for surface-mount device (SMD) assembly.
• Small dimensions, ideal for miniature electronic circuits.
• Tape-and-reel packaging suitable for automated SMD assembly.
• Specifications suitable for high-speed switching and rectifier circuits.

Applications:

• Low-signal rectifiers in electronic circuits.
• High-speed switching circuits.
• Power supply circuits and converters in circuits designed to meet the diode's specifications.
• Reverse-polarity protection in appropriately designed electronic circuits.
• Electronic circuits requiring short switching times.
• Logic and digital circuits, including signal-switching applications.
• Control and automation systems.
• Portable devices and miniature electronic modules where compact component dimensions are essential.
• Circuits where reducing power losses is important, thanks to the low forward voltage drop of Schottky diodes.
• Electronic circuits assembled on PCBs using SMD components in SOT-23 packages.

If you want to check current stock levels and prices, click on the product symbol.
