New thermostats from Bourns
2020-03-03

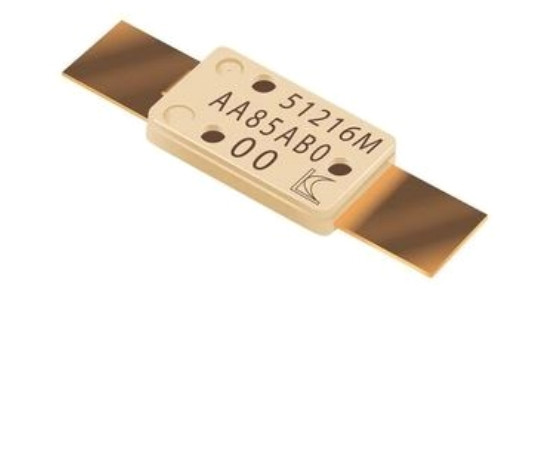

The new thermostats from Bourns are characterized by high current capacity and low impedance, and also reduce excess current very quickly to nominal limits. They are widely used in the eletronic sector (laptops, notebooks, tablets, smartphones).
Common parameters:
Trip temperature: from 72 to 90°C
Reset temperature: min 40°C
Contact rating: 9 VDC / 35 A, 1000 cycles
Maximum breaking current: 5 VDC / 60 A, 100 cycles
Maximum voltage: 28VDC / 35 A, 100 cycles
Minimum holding voltage: 3.5VDC
Maximum leakage current: 200mA
Resistance: 2mΩ
|
Part No. |
Temperature [°C] |
Durability |
|
|
72 |
1000 cycles |
|
|
77 |
1000 cycles |
|
|
90 |
1000 cycles |
|
|
72 |
1000 cycles |
|
|
85 |
1000 cycles |
