New tools from Velleman

2020-07-07

We recommend new tools from Velleman, available in our offer:

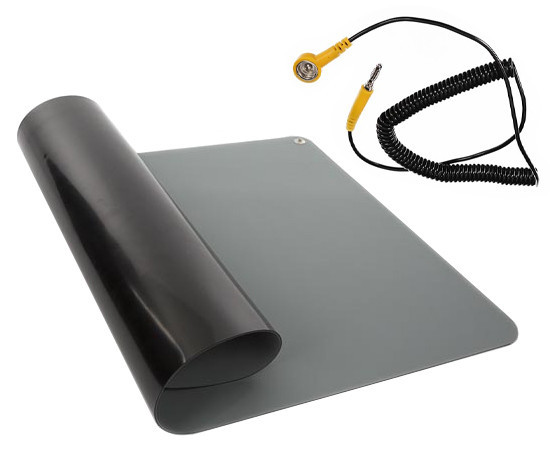

ANTISTATIC WORKING MATS WITH GROUNDING CORD

N AS13

N AS14

N AS15

Surface:

matte

matte

matte

Thickness:
- conducting layer:



- electrostatic dissipation layer:

2mm
1,8mm



0,2mm

2mm
1,8mm



0,2mm

2mm
1,8mm



0,2mm

Material:
- top:

- bottom


static dissipative rubber

static dissipative rubber


static dissipative rubber

static dissipative rubber


static dissipative rubber

static dissipative rubber

Dimensions:

30 x 55 cm

50 x 60 cm

70 x 100 cm

Surface resistance:

- top layer:

- bottom layer



10^6 - 10^9 Ω

10^3 - 10^5 Ω



10^6 - 10^9 Ω

10^3 - 10^5 Ω



10^6 - 10^9 Ω

10^3 - 10^5 Ω

Volume resistance:

10^5 - 10^8 Ω

10^5 - 10^8 Ω

10^5 - 10^8 Ω

Attrition rate:

0,02 g / cm²

0,02 g / cm²

0,02 g / cm²

Charge decay:

< 0,1 S

< 0,1 S

< 0,1 S

Strength:

- tear strength:

- tensile strength:



20,6 KN / m

3,6 Mpa



20,6 KN / m

3,6 Mpa



20,6 KN / m

3,6 Mpa

Fracture elongation:

188 %

188 %

188 %

High temperature resistance:

200 - 300 °C

200 - 300 °C

200 - 300 °C

Softness:

103 - 109

103 - 109

103 - 109



Features:

  • environmental friendly material,
  • wear resistant & scratch resistant.
  • anti-acid, anti-alkali, anti-chemical flux,
  • stable performance: high and low temperature resistance,
  • good toughness & high elasticity.

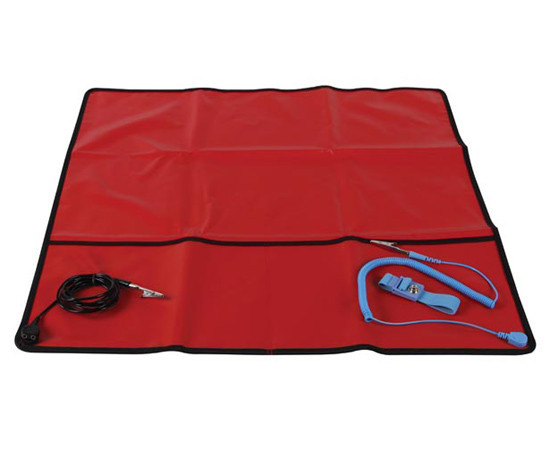

ANTI-STATIC FIELD SERVICE KIT - RED

N AS9



Dimensions:

60 x 60 cm

Thickness:

0,37 mm

Electrical properties:
surface resistance

- volume resistance

- RTT (point to point)


± 108 – 1010 &Ω;/kw

< 1010 &Ω;/cm

± 108 - 1010&Ω

Temperature resistance:

maks. 70 °C (not resistant to soldering)



Features:

  • provides a portable static-free work area for working with sensitive electronics in the field,
  • contents:
    - red static dissipative vinyl mat with two connect points
    - adjustable elastic wrist strap
    - 3 m (10 ft) coil cord (1 MΩ resistor)
    - 1.80 m (6 ft) common point grounding cord with banana jack & clip (1 MΩ resistor)
    -10 mm female snap
  • optional elastic wrist strap: AS3

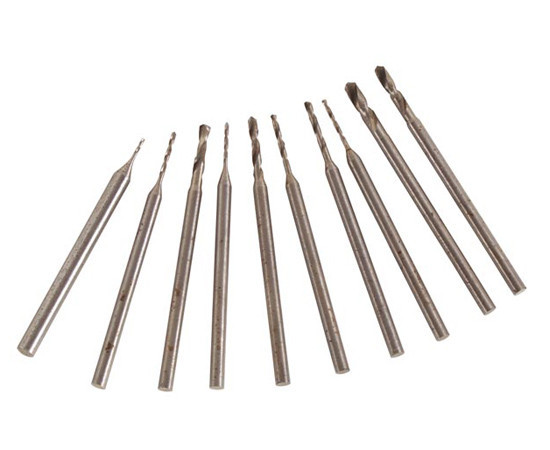

    ASSORTED MINI DRILL BIT SET

N DRILLSET1





No of bits:

bits with different drill diameter:  0.6 / 0.7 / 0.8 / 0.9 / 1.0 / 1.2 / 1.5 / 1.8 / 2.0 / 2.3 mm

Shaft thickness::

2.33 mm ± 5%

Length:

45.5 mm ± 5%

* packed in plastic box

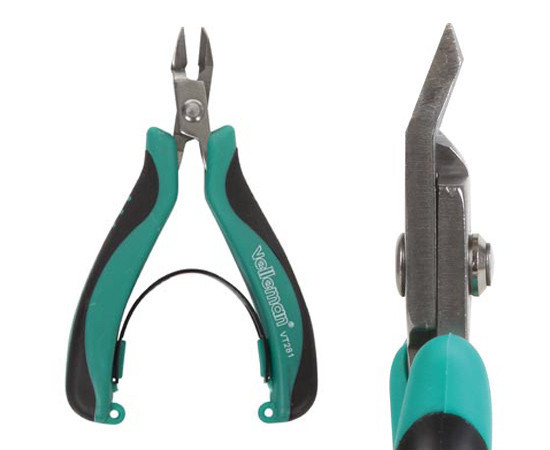

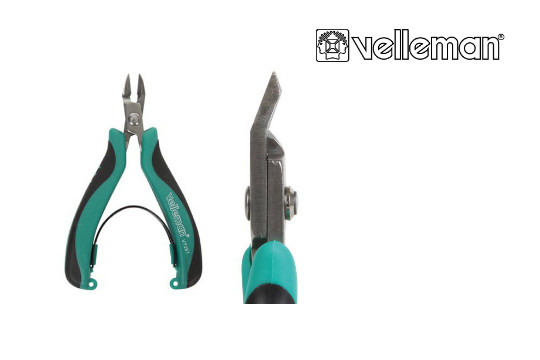

SIDE CUTTER PLIERS

N VT281





Jaws height:

3mm

Dimensions:

64 x 110 mm

Weight:

36 g



Features:

  • stainless steel
  • self-opening thanks to handles with spring
  • suitable for copper wire with diameter < 1.3 mm
