Products of the company MENTOR – a novelty in our sales offer

2022-05-05

We recommend the products of MENTOR, which are based on three continents and representations in over 40 countries, headquartered in Erkrath near Düsseldorf and further locations in Germany, Poland, Tunisia, China and Thailand. It specializes in the manufacture of articles based on LED technology, lighting systems for decorative and usable lighting, modern control and display elements for housing fronts and other mechanical, electronic and optoelectronic components from the HMI sector.

Our offer has been expanded to include M-Fibre a system of custom LED modules and special lateral light guides adapted to the specific requirements of the customer’s application.
SYMBOL DESCRIPTION

OL.1330.0001

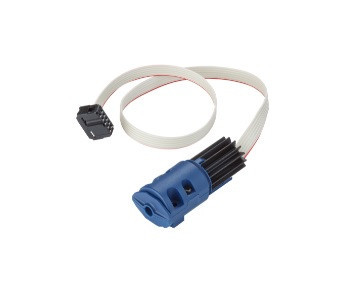

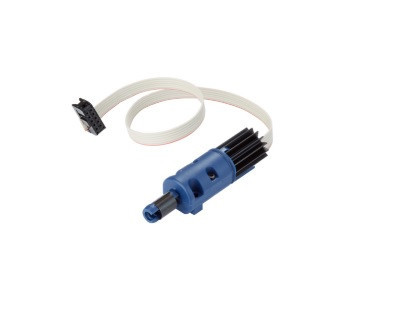

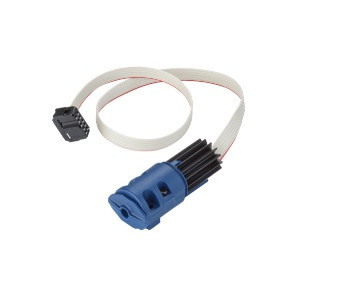

M-Fibre LED module RGB; 1W; plug

OL.1330.0002

M-Fibre LED module white; 1W; plug

OL.1330.0003

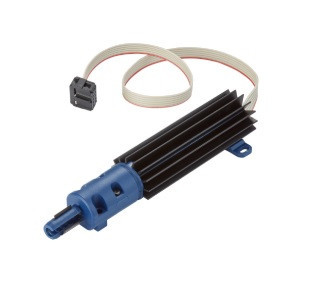

M-Fibre LED module RGB; 3W; plug

OL.1330.0005

M-Fibre LED module Red; 1W; plug

OL.1330.0006

M-Fibre LED module Yellow; 1W; plug

OL.1330.0008

M-Fibre LED module Blue; 1W; plug

OL.1330.1001

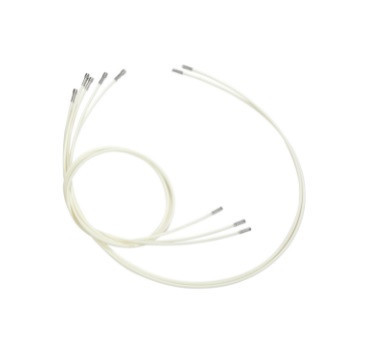

M-Fibre Side light fibre 250mm/3,3mm

OL.1330.1002

M-Fibre Side light fibre 500mm/3,3mm

OL.1330.1003

M-Fibre Side light fibre 750mm/3,3mm

OL.1330.1004

M-Fibre Side light fibre 1000mm/3,3mm

OL.1330.1005

M-Fibre Side light fibre 1500mm/3,3mm

OL.1330.1006

M-Fibre Side light fibre 2000mm/3,3mm

OL.1330.1008

M-Fibre Side light fibre 3000mm/3,3mm
M-Fibre is a complete system of four individual, highly flexible fibers surrounded by a white cover, with different lengths and compact and powerful LED modules. M-Fibre is used in the automotive industry, mechanical engineering and household appliances. Due to the spatial separation of the light source and the light output, M-Fibre can also be used under water or in the food sector.



Mounting to the LED module is done by means of an aluminium fitting. The compact, powerful LED modules are equipped with only one white or RGB LED. They are available in two performance variants and thus offer optimal solutions for the installation space for different ambient brightnesses. The number of modules required depends on the length of the fibres to be illuminated.

FEATURES AND BENEFITS OF THE PRODUCT:

  • Full lighting system, consisting of side-lit fibers, LED modules and matching LED drivers, to be used day and night
  • Lateral glowing fibers with homogeneous luminosity without visible colour differences, even at long lengths and narrow bending radii (Rmin= 20 mm)
  • 360° illumination angle, light supply from one or both sides
  • Homogeneous light through full activation
  • Optimal for the installation space, powerful LED module
  • No losses due to external sources of interference, e. g. during clamping/screwing
  • Optimization for the installation space
  • RoHS and REACH compliance
