TFT LCD and e-paper displays
2022-02-23
TFT LCD displays are also a device for inputting input information and for displaying output information. Their structure is based on thin-film transistors. LCD TFT technology is one of the most popular technologies in the field of displays and interfaces. TFT displays offered by Micros can work with Arduino, Raspberry Pi, BeagleBone and other development platforms for embedded systems.
The e-paper displays mimic the appearance of regular ink on paper. Unlike standard flat panel displays that emit light, electronic e-ink displays reflect light like paper and provide a wider viewing angle. These types of screens are distinguished by high contrast and low energy consumption.
| The Micros symbol | Resolution | Diagonal (inch) | External dimensions | Interface | Supply voltage | Application |
|---|---|---|---|---|---|---|
|
|
128x128 | 1,44'' | 65x30,2mm | SPI | 3,3V DC | Raspberry Pi |
|
|
128x160 | 1,8'' | 56,5x34,0mm | SPI | 3,3V DC | ARDUINO, Raspberry Pi |
|
|
320x480 | 3,5'' | 85,06x56,21mm | SPI | 3,3...5V DC | Raspberry Pi |
|
|
800x480 | 7,0'' | 164,9x124,27mm | HDMI | 3,3...5V DC | Raspberry Pi |
|
|
1024x600 | 7,0'' | 164,9x124,27mm | HDMI | 3,3...5V DC | Raspberry Pi |
| The Micros symbol | Resolution | Diagonal (inch) | Dimensions | Window dimensions | Type of display | Interface |
|---|---|---|---|---|---|---|
|
|

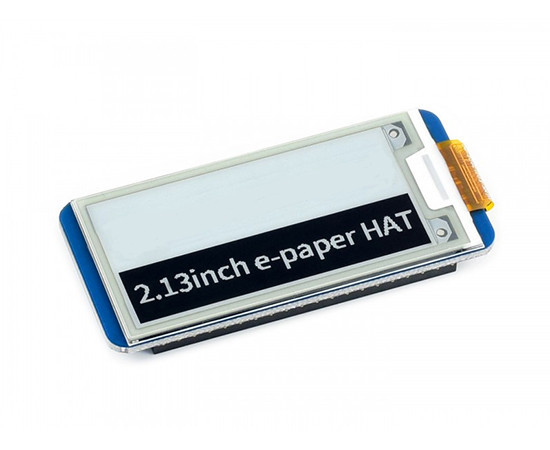

250x122 | 2,13'' | 65x30,2mm | 48,55x23,71mm | graphic | SPI |
|
|

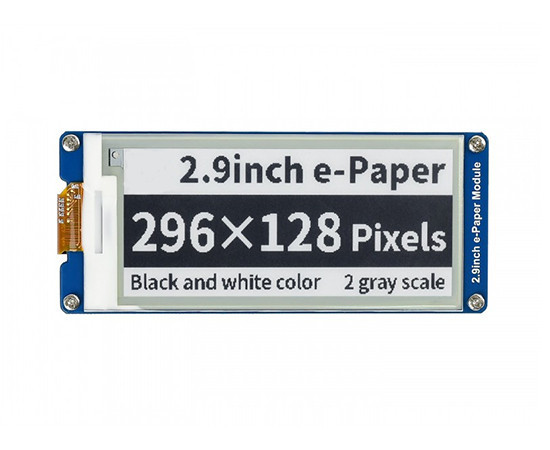

296x128 | 2,9'' | 89,5x38mm | 66,89x29,05mm | graphic | 3/4-wire SPI |
