SN75189N

Symbol Micros: 75189

14

75189

Contractor Symbol:

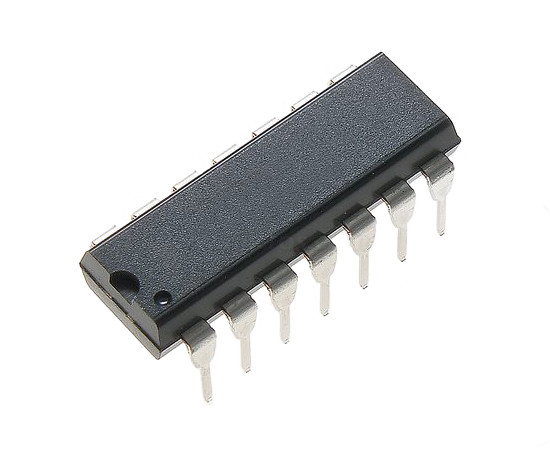

Case : PDIP14

Datasheet

Technical drawing Add to favourites

Quad RS-232 Line Receiver, 1Mbps, 5V, 0÷70°C, Rf = 8.4kΩ Replacement: MC1489P.

Parameters

Transmission speed:	1Mbps
Number of drivers:	0
Number of receivers:	4
Propagation time:	25ns
Supply voltage:	5V
Operating temperature (range):	0°C ~ 70°C

All parameters

Manufacturer:: Texas Instruments Manufacturer part number: SN75189N RoHS Case style: PDIP14 Datasheet

In stock:

311 pcs.

Quantity of pcs.	3+	10+	25+	150+	700+
Net price (EUR)	0,3149	0,2051	0,1643	0,1302	0,1208

Add to comparison tool Add inquiry (RFQ)

Packaging:
25/700 Quantity (multiple: 1)

- +

• Parameters

Transmission speed:	1Mbps
Number of drivers:	0
Number of receivers:	4
Propagation time:	25ns
Supply voltage:	5V
Operating temperature (range):	0°C ~ 70°C
