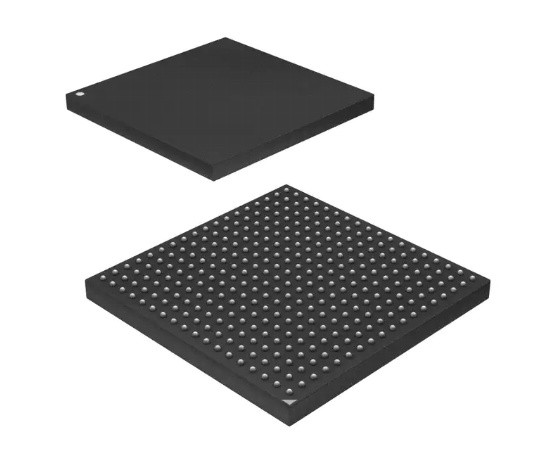

ATSAMA5D36A-CU LFBGA324

Symbol Micros: ATsamA5D36A-CU

88627

ATsamA5D36A-CU

Contractor Symbol:

Case : LFBGA324

Datasheet

Technical drawing Add to favourites

MCU 32-bit SAMA5D3 ARM Cortex A5 RISC 160KB ROM 1.2V ATSAMA5D36A-CUR (T/R)

Product description

Parameters

Manufacturer:	MICROCHIP
Architecture:	32-bit
RAM memory:	128kB
Number of I/O:	160
Supply voltage range:	1,08V~1,32V
Frequency:	536MHz
ADC:	YES

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters
• Description

Manufacturer:	MICROCHIP
Architecture:	32-bit
RAM memory:	128kB
Number of I/O:	160
Supply voltage range:	1,08V~1,32V
Frequency:	536MHz
ADC:	YES
DAC:	NO
UART/USART interface:	YES
SPI interface:	YES
TWI (I2C) interface:	YES
CAN interface:	YES
ETHERNET interface:	YES
USB interface:	YES
Encryption:	YES
Operating temperature (range):	-40°C ~ 85°C
Case:	LFBGA324

Detailed description

Micros Part Number	ATsamA5D36A-CU
Manufacturer Part Number	ATSAMA5D36A-CU
Pin Count	324
Max. Operating Freq.	536 MHz
CPU	Cortex-A5
Max I/O Pins	160
SPI	6
UART	7
SRAM (Kbytes)	128
Self Program Memory	Tak
Operating Voltage (Vcc)	1.08 to 1.32
Timers	6
