3413.0326.22 Schurter Fuse

Symbol Micros: B 3413.0326.22

115223

B 3413.0326.22

Contractor Symbol:

Case : Rys.3413.0326.22

Datasheet

Technical drawing Add to favourites

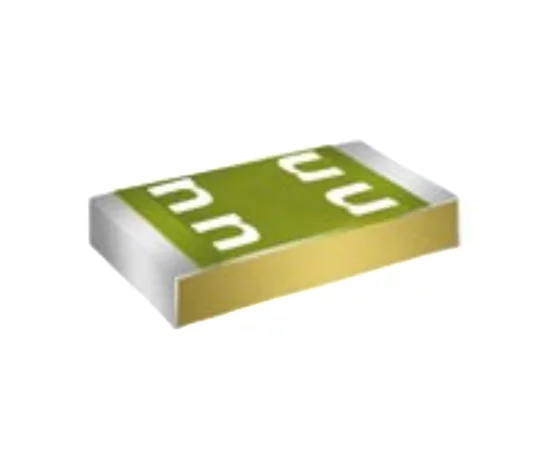

Surface mount chip fuse: slow blow; glass type; SMD; 1206; current: 7A; voltage: 32VAC; 63VDC; operating temperature: -55°C ~90°C

Parameters

Manufacturer:	SCHURTER
Kind of fuse:	Glass
Fuse characteristic:	Time-lag
Rated current:	7,0A
Rated voltage:	32VAC; 63VDC
Mounting:	SMD
Case:	1206

All parameters

Manufacturer:: Schurter Manufacturer part number: 3413.0326.22 RoHS Case style: Rys.3413.0326.22 Datasheet

In stock:

100 pcs.

Quantity of pcs.	2+	10+	50+	300+	900+
Net price (EUR)	0,8062	0,5101	0,4019	0,3596	0,3502

Add to comparison tool Add inquiry (RFQ)

Packaging:
300 Quantity (multiple: 1)

- +

• Parameters

Manufacturer:	SCHURTER
Kind of fuse:	Glass
Fuse characteristic:	Time-lag
Rated current:	7,0A
Rated voltage:	32VAC; 63VDC
Mounting:	SMD
Case:	1206
Operating temperature (range):	-55°C ~ 90°C
