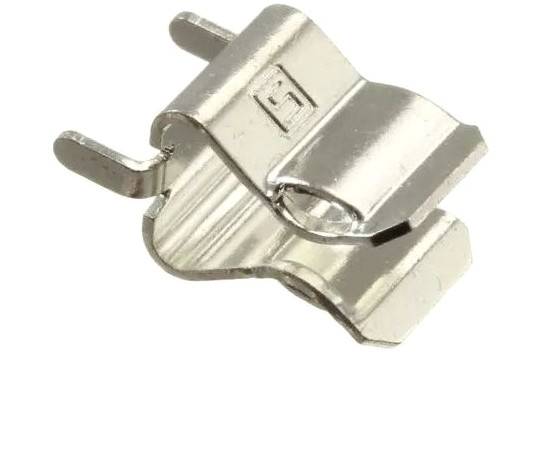

8040.0001 Schurter Clip

Symbol Micros: B 8040.0001 SCH

292771

B 8040.0001 SCH

Contractor Symbol:

Case : Rys.8040.0001

Datasheet

Technical drawing Add to favourites

Fuse clip; 6.3x32mm; 32A; 600V; r=34,9mm; PCB; srebrne; dimensions: 13.9x7.6x7.1mm

Parameters

Dimensions:	13.9x7.6x7.1mm
Terminal pitch:	34,9mm
Fuse size:	6,3x32mm
Current:	32A
Operating voltage:	600V
Accessories type:	Fuse clips
Colour:	Silver

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Dimensions:	13.9x7.6x7.1mm
Terminal pitch:	34,9mm
Fuse size:	6,3x32mm
Current:	32A
Operating voltage:	600V
Accessories type:	Fuse clips
Colour:	Silver
Mounting:	PCB
Manufacturer:	SCHURTER
