3568 Keystone Holder

Symbol Micros: B KEYS3568

295077

B KEYS3568

Contractor Symbol:

Case : Rys.KEYS3568

Datasheet

Technical drawing Add to favourites

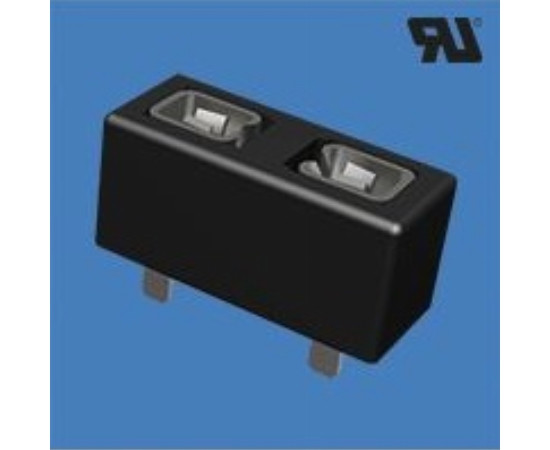

Fuse holder; 2.8x0.8mm; 30A; 500V; r=9,9mm; PCB; black; series mini ATM; 297; 997; dimensions: 16x6,73x7,37mm

Parameters

Dimensions:	16x6,73x7,37mm
Terminal pitch:	9,9mm
Fuse size:	2.8x0.8mm
Current:	30A
Operating voltage:	500V
Accessories type:	Socket
Colour:	Black

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Dimensions:	16x6,73x7,37mm
Terminal pitch:	9,9mm
Fuse size:	2.8x0.8mm
Current:	30A
Operating voltage:	500V
Accessories type:	Socket
Colour:	Black
Mounting:	PCB
Manufacturer:	Keystone
