3413.0221.11 Schurter Fuse

Symbol Micros: B6SsA03.15 SCH

293726

B6SsA03.15 SCH

Contractor Symbol:

Case : Rys.bezp.1206Ss

Datasheet

Technical drawing Add to favourites

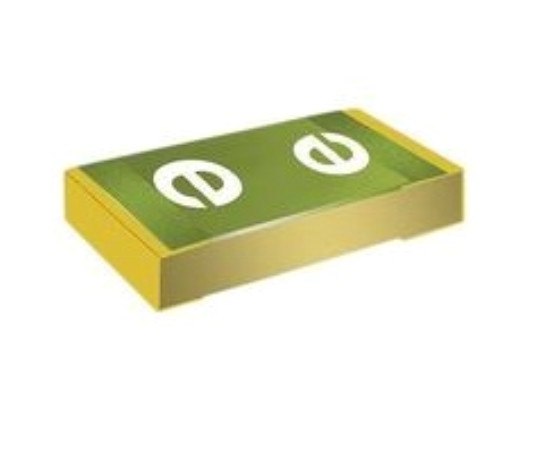

Surface mount chip fuse: fast-acting; glass type; SMD; 1206; current: 3.15A; voltage: 63VDC; operating temperature: -55°C ~90°C

Parameters

Case:	1206
Fuse characteristic:	Fast-acting
Kind of fuse:	Glass
Manufacturer:	SCHURTER
Mounting:	SMD
Operating temperature (range):	-55°C ~ 90°C
Rated current:	3,15A

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Case:	1206
Fuse characteristic:	Fast-acting
Kind of fuse:	Glass
Manufacturer:	SCHURTER
Mounting:	SMD
Operating temperature (range):	-55°C ~ 90°C
Rated current:	3,15A
Rated voltage:	63VDC
