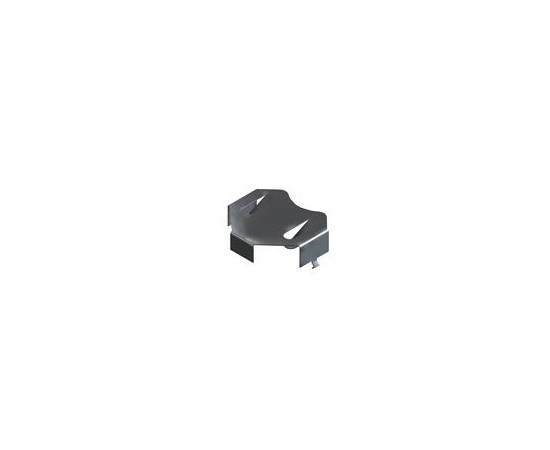

3039 Keystone Battery clip

Symbol Micros: BATKEYS3039

94639

BATKEYS3039

Contractor Symbol:

Case : Rys.KEYS3039

Datasheet

Add to favourites

Battery clip for CR2477; mounting: PCB; horizontal; number of batteries: 1; battery diameter: 24mm; length: 22,61mm; width: 26,88mm; height: 11,42mm

Product description

Parameters

Lenght:	22,61mm
Height [mm]:	11,42mm
Width [mm]:	26,88mm
Diameter:	24mm
Manufacturer:	Keystone
Cell count:	1
Mounting:	PCB

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters
• Description

Lenght:	22,61mm
Height [mm]:	11,42mm
Width [mm]:	26,88mm
Diameter:	24mm
Manufacturer:	Keystone
Cell count:	1
Mounting:	PCB
Leads:	N/A
Cable length:	N/A

Detailed description

Type: Battery clip Keystone 3039 horizontal

Model: Keystone P/N3039

No. of batteries: 1 pc

Battery diameter: 24mm

Height: 8.53mm

Battery size: CR2477

Material: Phosphor-bronze

Mounting: THT
