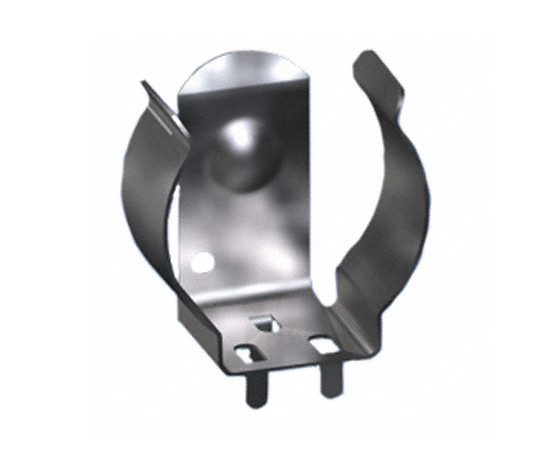

54 Keystone Battery clip

Symbol Micros: BATKEYS54

53317

BATKEYS54

Contractor Symbol:

Case : Rys.KEYS54

Datasheet

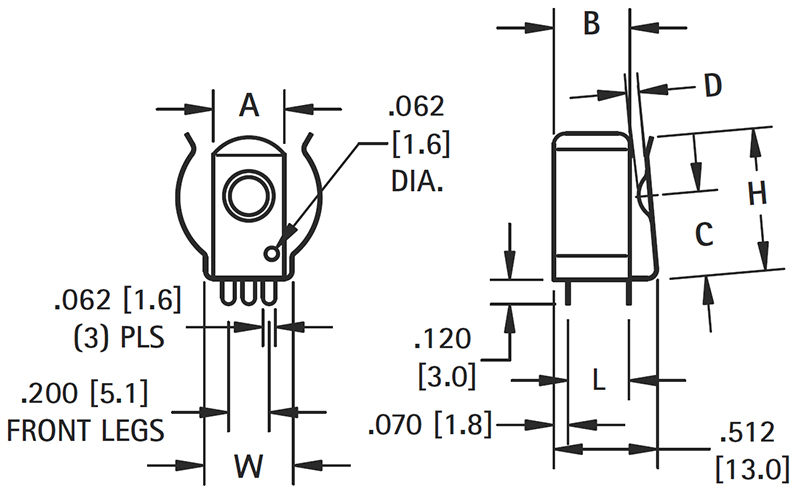

Technical drawing Add to favourites

Battery clip:17335, 17450, 17500, 17650, 18600, 2/3A, A, R23 mounting: PCB; battery diameter: 17-19mm; terminal pitch: 7.6mm; length: 16,59mm; width: 13mm; height: 9,52

Product description

Parameters

Lenght:	16,59mm
Height [mm]:	9,52mm
Width [mm]:	13mm
Manufacturer:	Keystone
Cell count:	1
Mounting:	PCB
Leads:	N/A

All parameters

Manufacturer:: KEYSTONE Manufacturer part number: P/N54 Case style: Rys.KEYS54

External warehouse:

500 pcs.

Quantity of pcs.	100+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,4327

Add inquiry (RFQ)

Packaging:
100

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters
• Description

Lenght:	16,59mm
Height [mm]:	9,52mm
Width [mm]:	13mm
Manufacturer:	Keystone
Cell count:	1
Mounting:	PCB
Leads:	N/A
Cable length:	N/A

Detailed description

Type: Clip for batteries Keystone 54

Model: Keystone P/N54

No. of batteries: 1 pc

Battery diameter : 17-19mm

Terminal pitch: 7.6mm

Battery size: 17335, 17450, 17500, 17650, 18500, 2/3A, A, R23

Material: Steel

Mounting: THT
