Resettable fuse; 12A

Symbol Micros: BpA12.00-016

16631

BpA12.00-016

Contractor Symbol:

Case : Rys.BP16-1200

Datasheet

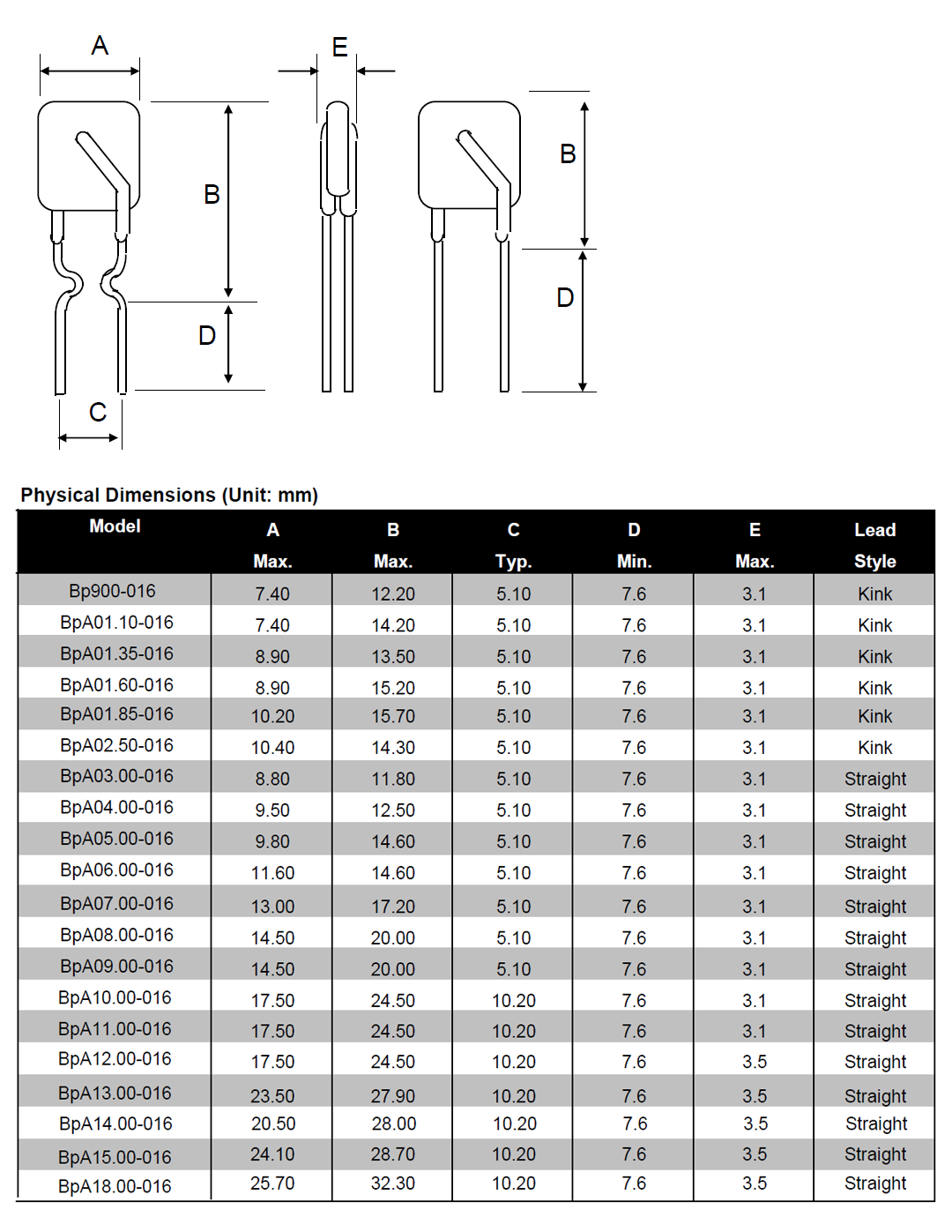

Technical drawing Add to favourites

Resettable fuse; THT; current: 12A; voltage: 16V; r=10.2mm; endurance: 100cycles; operating temperature: -40÷85°C;

Parameters

Rated current:	12A
Operating voltage:	16V
Case:	N/A
Manufacturer:	N/A
Terminal pitch:	10,2mm
Mounting:	THT
Operating temperature (range):	-40°C ~ 85°C

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Rated current:	12A
Operating voltage:	16V
Case:	N/A
Manufacturer:	N/A
Terminal pitch:	10,2mm
Mounting:	THT
Operating temperature (range):	-40°C ~ 85°C
Kind of fuse:	Polymer
