0031.2307 Schurter Holder

Symbol Micros: Bu0031.2307

346889

Bu0031.2307

Contractor Symbol:

Case : Rys.0031.2307

Datasheet

Technical drawing Add to favourites

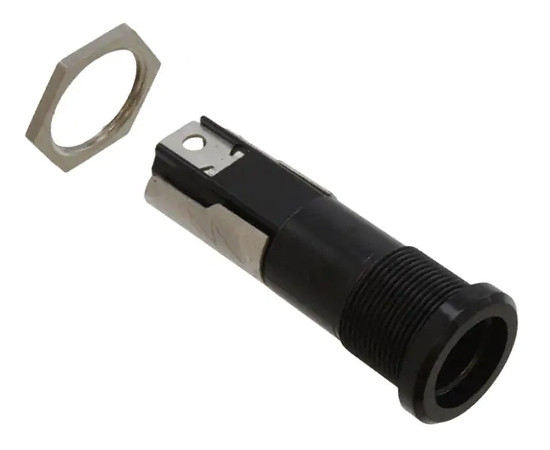

Fuse holder; 5x20mm; 6.3x32mm; 16A; 500V; on panel; black; dimensions: 63x22mm; associated items: Bu0031.2303; Bu0031.2308; Bu0031.2304

Parameters

Dimensions:	63x22mm
Terminal pitch:	0
Fuse size:	5x20mm; 6.3x32mm
Current:	16A
Manufacturer:	SCHURTER
Operating voltage:	500V
Accessories type:	Socket

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Dimensions:	63x22mm
Terminal pitch:	0
Fuse size:	5x20mm; 6.3x32mm
Current:	16A
Manufacturer:	SCHURTER
Operating voltage:	500V
Accessories type:	Socket
Colour:	Black
Mounting:	On panel
