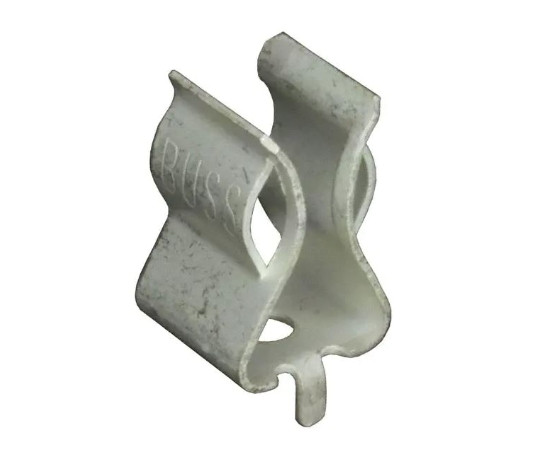

BK/1A3400-09-R EATON Clip

Symbol Micros: Bu1A3400-09-R E

293688

Bu1A3400-09-R E

Contractor Symbol:

Case : Rys.1A3400-09

Datasheet

Technical drawing Add to favourites

Fuse holder; 10.3x38 mm; 5AG; Midget; 20A; r=10,99mm; PCB; silver; dimensions: 18,5x12,5x11.1mm; tinned

Parameters

Dimensions:	18,5x12,5x11.1mm
Terminal pitch:	10,99mm
Current:	20A
Fuse size:	10.3x38 mm; 5AG; Midget
Accessories type:	Handle
Colour:	Silver
Manufacturer:	EATON

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Dimensions:	18,5x12,5x11.1mm
Terminal pitch:	10,99mm
Current:	20A
Fuse size:	10.3x38 mm; 5AG; Midget
Accessories type:	Handle
Colour:	Silver
Manufacturer:	EATON
Mounting:	PCB
