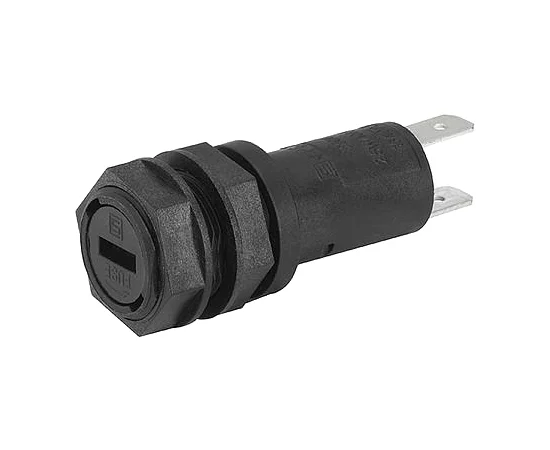

3101.0020 Schurter Holder

Symbol Micros: Bu3101.0020

345607

Bu3101.0020

Contractor Symbol:

Case : Rys.3101.0020

Datasheet

Technical drawing Add to favourites

Fuse holder; 5x20mm; 10A; 250V; r=7,5mm; on panel; black; dimensions: 16,1x41,5mm; associated items: Bu3101.0220; Bu3101.0025; Bu3101.0225

Parameters

Dimensions:	16,1x41,5mm
Terminal pitch:	7,5mm
Fuse size:	5x20mm
Current:	10A
Operating voltage:	250V
Accessories type:	Socket
Colour:	Black

All parameters

Manufacturer:: Schurter Manufacturer part number: 3101.0020 RoHS Case style: Rys.3101.0020 Datasheet

In stock:

40 pcs.

Quantity of pcs.	1+	5+	20+	100+	300+
Net price (EUR)	1,9312	1,4326	1,2523	1,1634	1,1353

Add to comparison tool Add inquiry (RFQ)

Packaging:
100 Quantity (multiple: 1)

- +

Manufacturer:: Schurter Manufacturer part number: 3101.0020 Case style: Rys.3101.0020

External warehouse:

340 pcs.

Quantity of pcs.	10+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	1,1381

Add to comparison tool Add inquiry (RFQ)

Packaging:
10

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Dimensions:	16,1x41,5mm
Terminal pitch:	7,5mm
Fuse size:	5x20mm
Current:	10A
Operating voltage:	250V
Accessories type:	Socket
Colour:	Black
Mounting:	On panel
Manufacturer:	SCHURTER
