3101.0055 Schurter Holder

Symbol Micros: Bu3101.0055

105702

Bu3101.0055

Contractor Symbol:

Case : Rys.3101.0055

Datasheet

Technical drawing Add to favourites

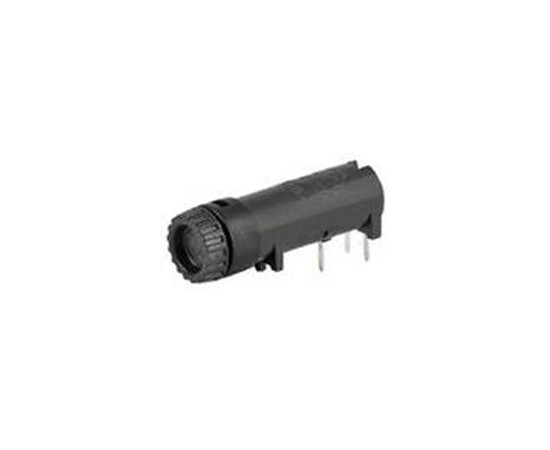

Fuse holder; 5x20mm; 10A; 250V; PCB; black; dimensions: 12,5x37mm; associated items: Bu3101.0050

Parameters

Dimensions:	12,5x37mm
Terminal pitch:	0
Fuse size:	5x20mm
Current:	10A
Operating voltage:	250V
Accessories type:	Socket
Colour:	Black

All parameters

Manufacturer:: Schurter Manufacturer part number: 3101.0055 RoHS Case style: Rys.3101.0055 Datasheet

In stock:

39 pcs.

Quantity of pcs.	1+	5+	20+	100+	300+
Net price (EUR)	1,7006	1,2607	1,1031	1,0232	0,9996

Add to comparison tool Add inquiry (RFQ)

Packaging:
100 Quantity (multiple: 1)

- +

• Parameters

Dimensions:	12,5x37mm
Terminal pitch:	0
Fuse size:	5x20mm
Current:	10A
Operating voltage:	250V
Accessories type:	Socket
Colour:	Black
Mounting:	PCB
Manufacturer:	SCHURTER
