3101.0115 Schurter Holder

Symbol Micros: Bu3101.0115

105709

Bu3101.0115

Contractor Symbol:

Case : Rys.3101.0115

Datasheet

Technical drawing Add to favourites

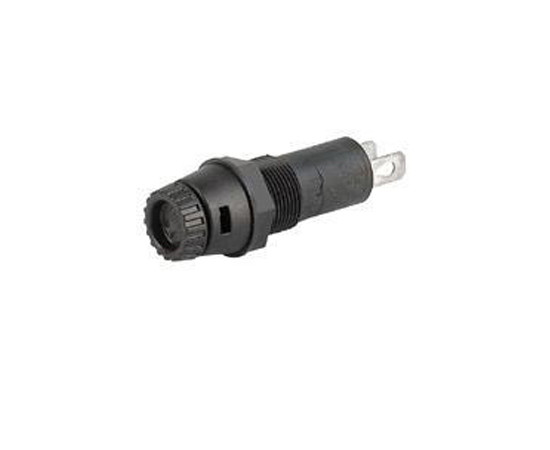

Fuse holder; 5x20mm; 10A; 250V; r=7,62mm; on panel; black; dimensions: 15x46,5mm

Parameters

Dimensions:	15x46,5mm
Terminal pitch:	7,62mm
Fuse size:	5x20mm
Current:	10A
Operating voltage:	250V
Accessories type:	Socket
Colour:	Black

All parameters

Manufacturer:: Schurter Manufacturer part number: 3101.0115 RoHS Case style: Rys.3101.0115 Datasheet

In stock:

100 pcs.

Quantity of pcs.	1+	5+	20+	100+	300+
Net price (EUR)	2,6830	2,0599	1,8294	1,7142	1,6766

Add to comparison tool Add inquiry (RFQ)

Packaging:
100 Quantity (multiple: 1)

- +

• Parameters

Dimensions:	15x46,5mm
Terminal pitch:	7,62mm
Fuse size:	5x20mm
Current:	10A
Operating voltage:	250V
Accessories type:	Socket
Colour:	Black
Mounting:	On panel
Manufacturer:	SCHURTER
