3101.0120 Schurter Holder

Symbol Micros: Bu3101.0120

345610

Bu3101.0120

Contractor Symbol:

Case : Rys.3101.0120

Datasheet

Technical drawing Add to favourites

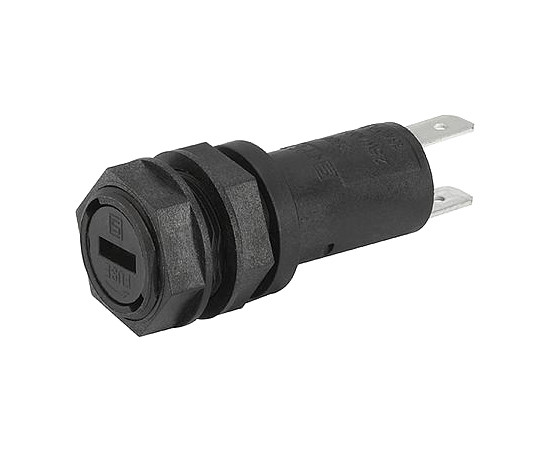

Fuse holder; 5x20mm; 10A; 250V; r=7,5mm; on panel; black; dimensions: 16,1x41,5mm; associated items: Bu3101.0020; Bu3101.0220; Bu3101.0025; Bu3101.0225; Bu3101.0320; Bu3101.0125; Bu3101.0325

Parameters

Dimensions:	16,1x41,5mm
Terminal pitch:	7,5mm
Current:	10A
Fuse size:	5x20mm
Operating voltage:	250V
Accessories type:	Socket
Colour:	Black

All parameters

Manufacturer:: Schurter Manufacturer part number: 3101.0120 RoHS Case style: Rys.3101.0120 Datasheet

In stock:

15 pcs.

Quantity of pcs.	1+	3+	10+	50+	200+
Net price (EUR)	2,1290	1,7860	1,5873	1,4643	1,4193

Add to comparison tool Add inquiry (RFQ)

Packaging:
50 Quantity (multiple: 1)

- +

Manufacturer:: Schurter Manufacturer part number: 3101.0120 Case style: Rys.3101.0120

External warehouse:

160 pcs.

Quantity of pcs.	10+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	1,8060

Add to comparison tool Add inquiry (RFQ)

Packaging:
10

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Dimensions:	16,1x41,5mm
Terminal pitch:	7,5mm
Current:	10A
Fuse size:	5x20mm
Operating voltage:	250V
Accessories type:	Socket
Colour:	Black
Manufacturer:	SCHURTER
Mounting:	On panel
