3101.0230 Schurter Holder

Symbol Micros: Bu3101.0230

345612

Bu3101.0230

Contractor Symbol:

Case : Rys.3101.0230

Datasheet

Technical drawing Add to favourites

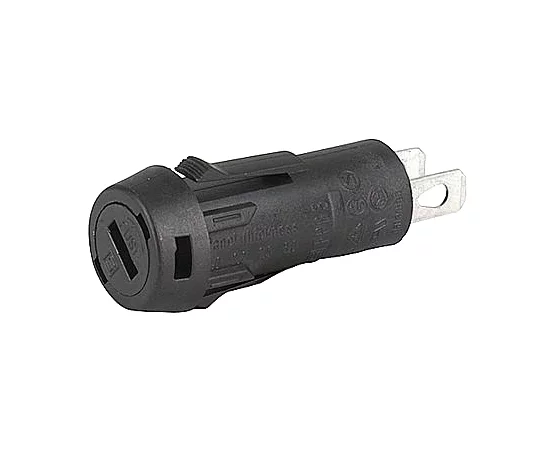

Fuse holder; 5x20mm; 10A; 250V; r=7,5mm; on panel; black; dimensions: 15x40mm; associated items: Bu3101.0030; Bu3101.0031; Bu3101.0035; Bu3101.0235; Bu3101.0036; Bu3101.0336, Bu3101.0331

Parameters

Dimensions:	15x40mm
Terminal pitch:	7,5mm
Fuse size:	5x20mm
Current:	10A
Manufacturer:	SCHURTER
Operating voltage:	250V
Accessories type:	Socket

All parameters

Manufacturer:: Schurter Manufacturer part number: 3101.0230 RoHS Case style: Rys.3101.0230 Datasheet

In stock:

90 pcs.

Quantity of pcs.	1+	5+	20+	100+	300+
Net price (EUR)	1,8882	1,4007	1,2247	1,1367	1,1106

Add to comparison tool Add inquiry (RFQ)

Packaging:
100 Quantity (multiple: 1)

- +

Manufacturer:: Schurter Manufacturer part number: 3101.0230 Case style: Rys.3101.0230

External warehouse:

2000 pcs.

Quantity of pcs.	100+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	1,1106

Add to comparison tool Add inquiry (RFQ)

Packaging:
100

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Dimensions:	15x40mm
Terminal pitch:	7,5mm
Fuse size:	5x20mm
Current:	10A
Manufacturer:	SCHURTER
Operating voltage:	250V
Accessories type:	Socket
Colour:	Black
Mounting:	On panel
