3101.0325 Schurter Holder

Symbol Micros: Bu3101.0325

346916

Bu3101.0325

Contractor Symbol:

Case : Rys.3101.0325

Datasheet

Technical drawing Add to favourites

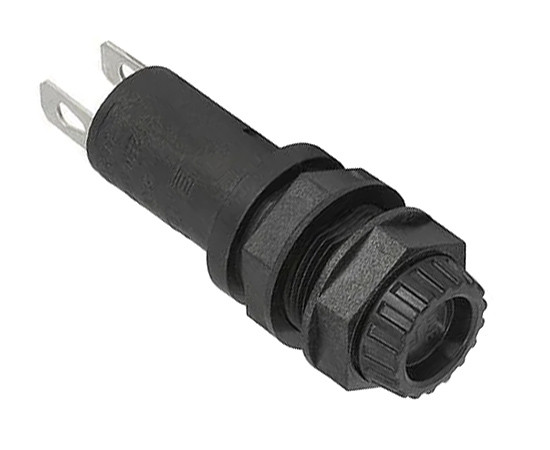

Fuse holder; 5x20mm; 10A; 250V; r=7,5mm; on panel; black; dimensions: 46,5x16,1mm; associated items: Bu3101.0020; Bu3101.0220; Bu3101.0025; Bu3101.0120; Bu3101.0320; Bu3101.0125; Bu3101.0225

Parameters

Dimensions:	46,5x16,1mm
Terminal pitch:	7,5mm
Fuse size:	5x20mm
Current:	10A
Operating voltage:	250V
Accessories type:	Socket
Colour:	Black

All parameters

Manufacturer:: Schurter Manufacturer part number: 3101.0325 Case style: Rys.3101.0325

External warehouse:

300 pcs.

Quantity of pcs.	100+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	1,7665

Add to comparison tool Add inquiry (RFQ)

Packaging:
100

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Dimensions:	46,5x16,1mm
Terminal pitch:	7,5mm
Fuse size:	5x20mm
Current:	10A
Operating voltage:	250V
Accessories type:	Socket
Colour:	Black
Mounting:	On panel
Manufacturer:	SCHURTER
