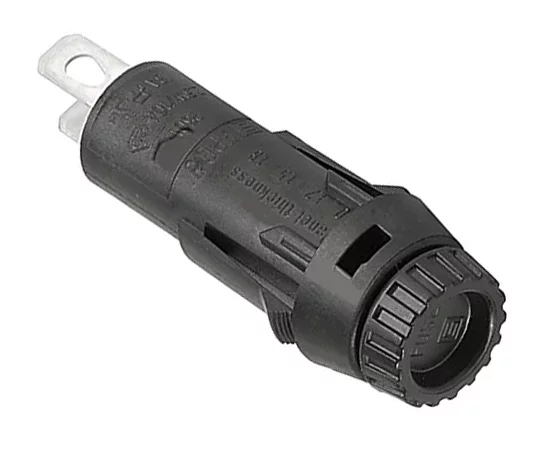

3101.0336 Schurter Holder

Symbol Micros: Bu3101.0336

346918

Bu3101.0336

Contractor Symbol:

Case : Rys.3101.0336

Datasheet

Technical drawing Add to favourites

Fuse holder; 5x20mm; 10A; 250V; r=7,5mm; on panel; black; dimensions: 45x15mm; associated items: Bu3101.0030; Bu3101.0031; Bu3101.0035; Bu3101.0230; Bu3101.0036; Bu3101.0235. Bu3101.0331

Parameters

Dimensions:	45x15mm
Terminal pitch:	7,5mm
Fuse size:	5x20mm
Current:	10A
Manufacturer:	SCHURTER
Operating voltage:	250V
Accessories type:	Socket

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Dimensions:	45x15mm
Terminal pitch:	7,5mm
Fuse size:	5x20mm
Current:	10A
Manufacturer:	SCHURTER
Operating voltage:	250V
Accessories type:	Socket
Colour:	Black
Mounting:	On panel
