LM18-3005PA

Symbol Micros: CZ LM18-3005PA

130566

CZ LM18-3005PA

Contractor Symbol:

Case : Rys.LM18-3005PA

Datasheet

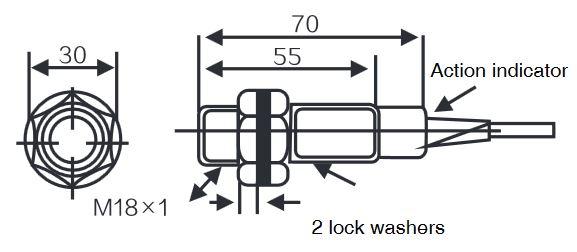

Technical drawing Add to favourites

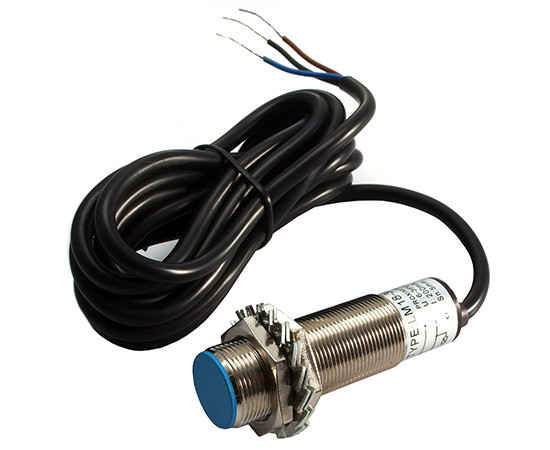

Inductive sensor; range: 0÷5mm; PNP/NO; 10÷30VDC; M18, cylindrical; wire: 2m; 200mA; operating temperature: -25°C÷75°C; metal; IP67

Parameters

Output configuration:	PNP/NO
Range:	0÷5mm
Sensor case:	M18, Cylindrical
Supply voltage:	10÷30VDC
Connection:	Lead 2m
Case material:	Metal
Operating temperature (range):	-25°C ~ 75°C

All parameters

Manufacturer:: JSP Manufacturer part number: LM18-3005PA RoHS Case style: Rys.LM18-3005PA Datasheet

In stock:

10 pcs.

Quantity of pcs.	1+	2+	4+	10+	40+
Net price (EUR)	6,4519	6,0756	5,8091	5,5753	5,3766

Add to comparison tool Add inquiry (RFQ)

Packaging:
2 Quantity (multiple: 1)

- +

• Parameters

Output configuration:	PNP/NO
Range:	0÷5mm
Sensor case:	M18, Cylindrical
Supply voltage:	10÷30VDC
Connection:	Lead 2m
Case material:	Metal
Operating temperature (range):	-25°C ~ 75°C
IP rating:	IP67
Operating current:	200mA
Sensor type:	Inductive
