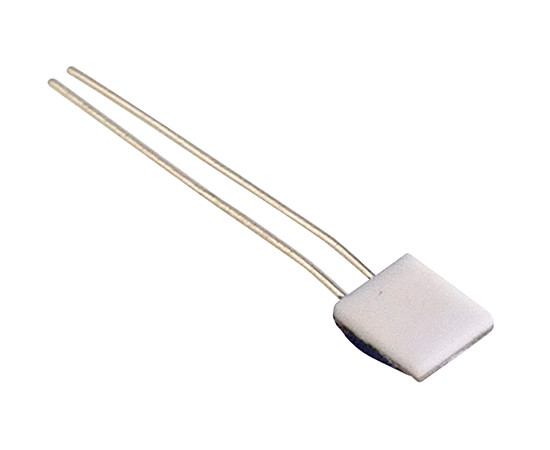

Temperature sensor PT100

Symbol Micros: CZ PT100-2,3x2,1/1,3B

116236

CZ PT100-2,3x2,1/1,3B

Contractor Symbol:

Case : Rys.PT100-2,3x2,1/1,3B

Datasheet

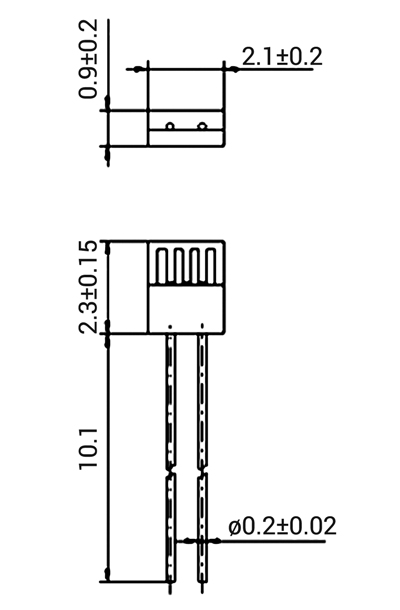

Technical drawing Add to favourites

100R; operating temperature: 0°C÷150°C; class 1,3 B body dimensions: 2,3x2,1mm, L=10mm

Parameters

Operating temperature (range):	0°C ~ 150°C
External dimensions:	2,3x2,1mm
Type of sensor:	Pt100
Tolerance:	Kl. 1,3 B
Resistance:	100 Ohm
Sensor type:	Temperature

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Operating temperature (range):	0°C ~ 150°C
External dimensions:	2,3x2,1mm
Type of sensor:	Pt100
Tolerance:	Kl. 1,3 B
Resistance:	100 Ohm
Sensor type:	Temperature
