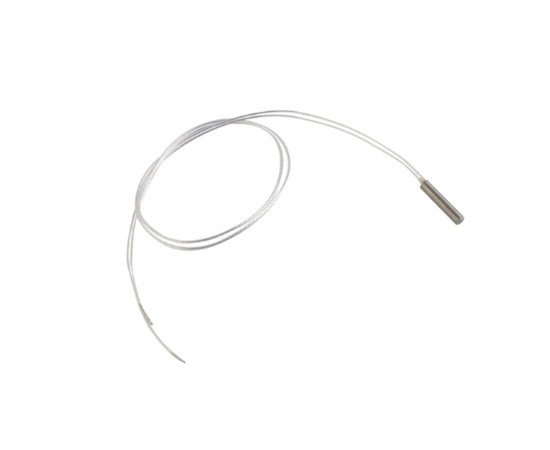

Temperature sensor PT100

Symbol Micros: CZ PT100-3x16/A II

116754

CZ PT100-3x16/A II

Contractor Symbol:

Case : Rys.PT100-3x16/A II

Datasheet

Add to favourites

100R; operating temperature: -40°C÷200°C; class A; ceramic case; 2 leads 300mm; body dimensions: 3x16mm

Parameters

Operating temperature (range):	-40°C ~ 200°C
External dimensions:	3x16mm
Cable length:	300mm
Type of sensor:	Pt100
Leads:	2 wires
Sensor case:	Ceramic
Tolerance:	Kl. A

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Operating temperature (range):	-40°C ~ 200°C
External dimensions:	3x16mm
Cable length:	300mm
Type of sensor:	Pt100
Leads:	2 wires
Sensor case:	Ceramic
Tolerance:	Kl. A
Resistance:	100 Ohm
Sensor type:	Temperature
