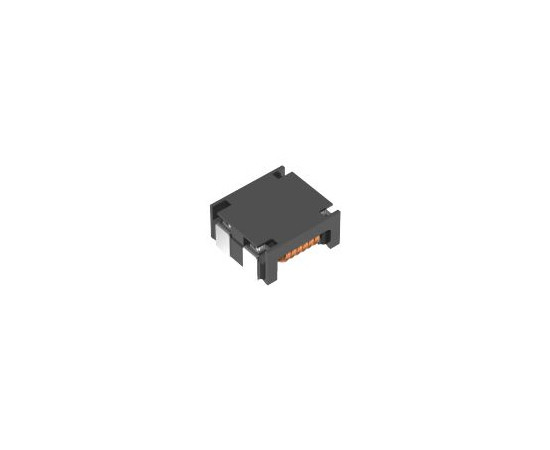

ACM1211-102-2PL-TL01 TDK Anti-interference filter

Symbol Micros: D ACM1211-102-2PL-TL01

119012

D ACM1211-102-2PL-TL01

Contractor Symbol:

Case : Rys.ACM1211

Datasheet

Technical drawing Add to favourites

Filter: anti-interference: 1kR (100MHz); 6A; 14mR; 80VDC; SMD 4844; dimensions: 12x11x6mm; operating temperature: -40°C~85°C

Parameters

Case:	4844
Current:	6A
Dimensions:	12x11x6mm
Impedance:	1000Ohm
Manufacturer:	TDK
Mounting:	SMD
Operating temperature (range):	-40°C ~ 85°C

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Case:	4844
Current:	6A
Dimensions:	12x11x6mm
Impedance:	1000Ohm
Manufacturer:	TDK
Mounting:	SMD
Operating temperature (range):	-40°C ~ 85°C
Operating voltage:	80V
