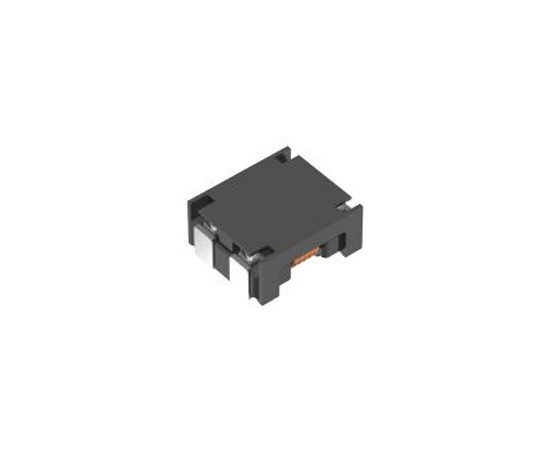

ACM7060-701-2PL-TL01 TDK Anti-interference filter

Symbol Micros: D ACM7060-701-2PL-TL01

119023

D ACM7060-701-2PL-TL01

Contractor Symbol:

Case : Rys.ACM7060

Datasheet

Technical drawing Add to favourites

Filter: anti-interference: 700R (100MHz); 4A; 15mR; 80VDC; SMD 2824; dimensions: 7x6x3.5mm; operating temperature: -40°C~85°C

Parameters

Manufacturer:	TDK
Mounting:	SMD
Case:	2824
Operating voltage:	80V
Current:	4A
Dimensions:	7x6x3.5mm
Operating temperature (range):	-40°C ~ 85°C

All parameters

Manufacturer:: TDK Manufacturer part number: ACM7060-701-2PL-TL01 Case style: Rys.ACM7060

External warehouse:

75000 pcs.

Quantity of pcs.	1500+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,6973

Add inquiry (RFQ)

Packaging:
1500

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

Manufacturer:: TDK Manufacturer part number: ACM7060-701-2PL-TL01 Case style: Rys.ACM7060

External warehouse:

11428 pcs.

Quantity of pcs.	1500+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,5023

Add to comparison tool Add inquiry (RFQ)

Packaging:
1500

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Manufacturer:	TDK
Mounting:	SMD
Case:	2824
Operating voltage:	80V
Current:	4A
Dimensions:	7x6x3.5mm
Operating temperature (range):	-40°C ~ 85°C
Impedance:	700Ohm
