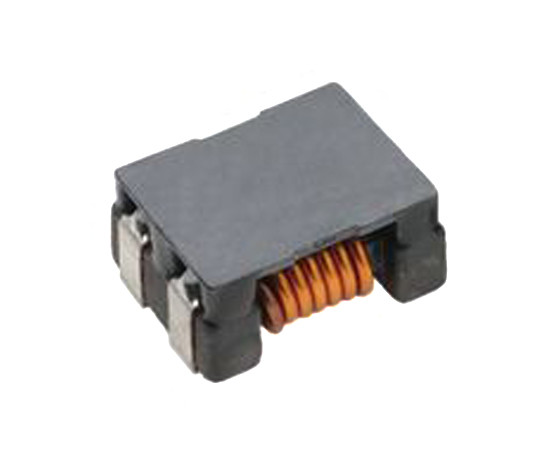

ACM9070-701-2PL-TL01 TDK Anti-interference filter

Symbol Micros: D ACM9070-701-2PL-TL01

119025

D ACM9070-701-2PL-TL01

Contractor Symbol:

Case : Rys.ACM9070

Datasheet

Technical drawing Add to favourites

Filter: anti-interference: 700R (100MHz); 5A; 10mR; 80VDC; SMD 0907; dimensions: 9x7x4.5mm; operating temperature: -40°C~85°C

Parameters

Manufacturer:	TDK
Mounting:	SMD
Case:	0907
Operating voltage:	80V
Current:	5A
Dimensions:	9x7x4.5mm
Operating temperature (range):	-40°C ~ 85°C

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Manufacturer:	TDK
Mounting:	SMD
Case:	0907
Operating voltage:	80V
Current:	5A
Dimensions:	9x7x4.5mm
Operating temperature (range):	-40°C ~ 85°C
Impedance:	700Ohm
