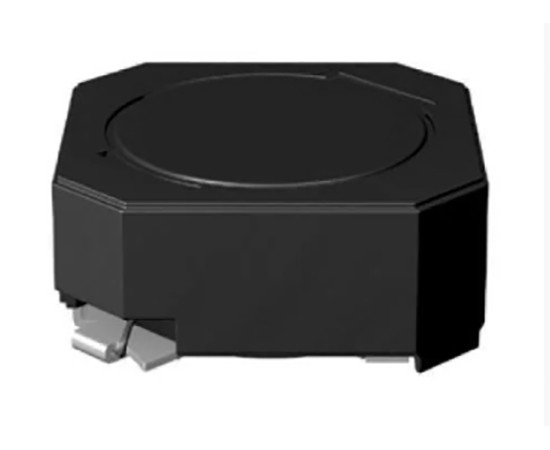

B82462G4222M000 TDK Power inductor

Symbol Micros: D B82462G4222M000

498300

D B82462G4222M000

Contractor Symbol:

Case : Rys.B82462G4

Datasheet

Technical drawing Add to favourites

SMD Power inductor; inductance: 2.2uH; 20%; current: 2.55A; resistance: 0.025R; dimensions: 6,3x6,3x3mm; operating temperature: -55°C ~ 150°C

Parameters

Manufacturer:	TDK
Inductor type:	Power
Mounting:	SMD
Inductance:	2,2uH
Current:	2,55A
Resistance:	0,025 Ohm
Tolerance [%]:	20%

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Manufacturer:	TDK
Inductor type:	Power
Mounting:	SMD
Inductance:	2,2uH
Current:	2,55A
Resistance:	0,025 Ohm
Tolerance [%]:	20%
Dimensions:	6,3x6,3x3mm
Operating temperature (range):	-55°C ~ 150°C
