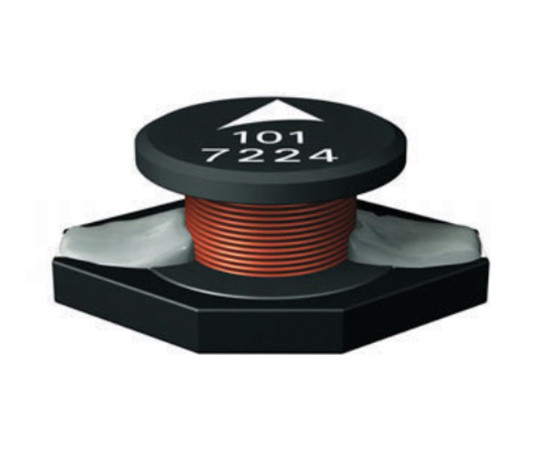

B82476A1223M000 TDK Power inductor

Symbol Micros: D B82476A1223M000

498454

D B82476A1223M000

Contractor Symbol:

Case : Rys.B82476A1

Datasheet

Technical drawing Add to favourites

SMD power inductor; inductance: 22uH; 20%; current: 2.7A; resistance: 0.05R; dimensions: 12.95x9.4x5.08mm; operating temperature: -55°C ~ 150°C

Parameters

Manufacturer:	TDK
Inductor type:	Power
Mounting:	SMD
Inductance:	22uH
Current:	2,70A
Resistance:	0,05 Ohm
Tolerance:	20%

All parameters

Manufacturer:: TDK Manufacturer part number: B82476A1223M Case style: Rys.B82476A1

External warehouse:

4500 pcs.

Quantity of pcs.	750+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,4808

Add to comparison tool Add inquiry (RFQ)

Packaging:
750

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Manufacturer:	TDK
Inductor type:	Power
Mounting:	SMD
Inductance:	22uH
Current:	2,70A
Resistance:	0,05 Ohm
Tolerance:	20%
Dimensions:	12.95x9.4x5.08mm
Operating temperature (range):	-55°C ~ 150°C
