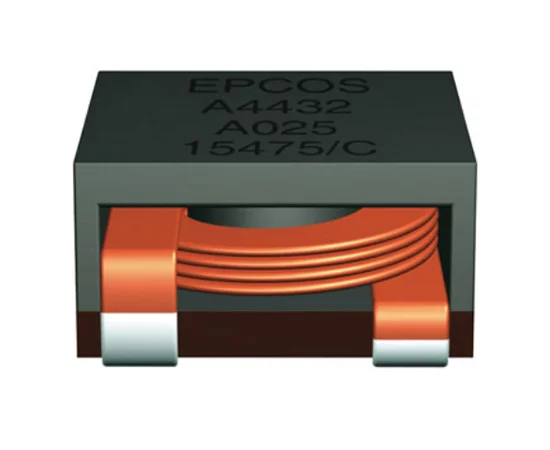

B82559A5612A025 TDK Inductor

Symbol Micros: D B82559A5612A025

499522

D B82559A5612A025

Contractor Symbol:

Case : Rys.B82559xA025

Datasheet

Technical drawing Add to favourites

Inductor; 6.1uH; 1.85mR; 24A; dimensions: 25,3x23,5x11,1mm; operating temperature: -40°C~125°C

Parameters

Manufacturer:	TDK
Mounting:	SMD
Inductance:	6,1uH
Current:	24A
Resistance:	0,00185 Ohm
Tolerance:	7%
Operating temperature (range):	-40°C ~ 125°C

All parameters

Manufacturer:: EPCOS Manufacturer part number: B82559A5612A025 Case style: Rys.B82559xA025

External warehouse:

1120 pcs.

Quantity of pcs.	280+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	3,1613

Add to comparison tool Add inquiry (RFQ)

Packaging:
280

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Manufacturer:	TDK
Mounting:	SMD
Inductance:	6,1uH
Current:	24A
Resistance:	0,00185 Ohm
Tolerance:	7%
Operating temperature (range):	-40°C ~ 125°C
