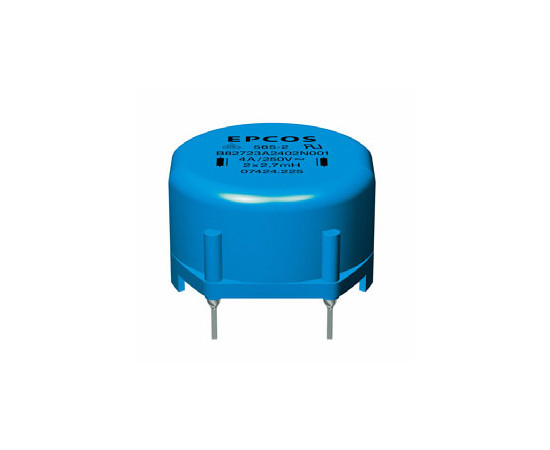

B82723A2402N001 TDK Power inductor

Symbol Micros: D B82723a2402n1

308247

D B82723a2402n1

Contractor Symbol:

Case : Rys.B82723A

Datasheet

Technical drawing Add to favourites

Power inductor; THT; 2.7mH; 30%; 4A; 60mR; dimensions: 27x28x16.8mm; operating temperature: -40°C~125°C

Parameters

Manufacturer:	TDK
Inductor type:	Power
Mounting:	THT
Inductance:	2,7mH
Current:	4A
Resistance:	0,06 Ohm
Tolerance:	30%

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Manufacturer:	TDK
Inductor type:	Power
Mounting:	THT
Inductance:	2,7mH
Current:	4A
Resistance:	0,06 Ohm
Tolerance:	30%
Operating temperature (range):	-40°C ~ 125°C
Dimensions:	27x28x16.8mm
