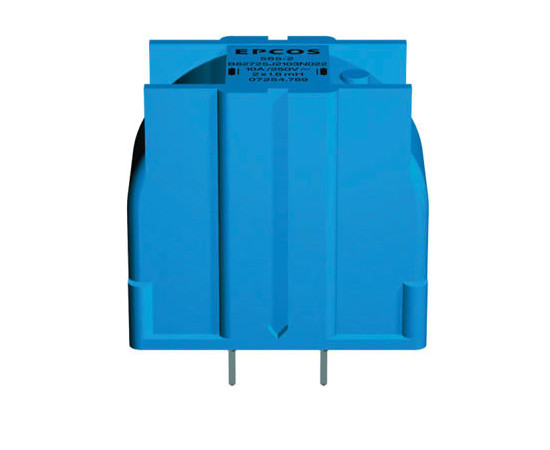

B82725J2103N022 TDK Power inductor

Symbol Micros: D B82725j2103n

302117

D B82725j2103n

Contractor Symbol:

Case : Rys.B82725J

Datasheet

Technical drawing Add to favourites

Power inductor; THT; 1.8mH; 30%; 10A; 13mR; dimensions: 40.4x21.5x40mm; operating temperature: -40°C~125°C

Parameters

Manufacturer:	TDK
Inductor type:	Power
Mounting:	THT
Inductance:	1,8mH
Current:	10A
Resistance:	13 mOhm
Tolerance:	30%

All parameters

Manufacturer:: EPCOS Manufacturer part number: B82725J2103N022 Case style: Rys.B82725J

External warehouse:

1802 pcs.

Quantity of pcs.	160+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	2,3827

Add to comparison tool Add inquiry (RFQ)

Packaging:
160

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Manufacturer:	TDK
Inductor type:	Power
Mounting:	THT
Inductance:	1,8mH
Current:	10A
Resistance:	13 mOhm
Tolerance:	30%
Operating temperature (range):	-40°C ~ 125°C
Dimensions:	40.4x21.5x40mm
