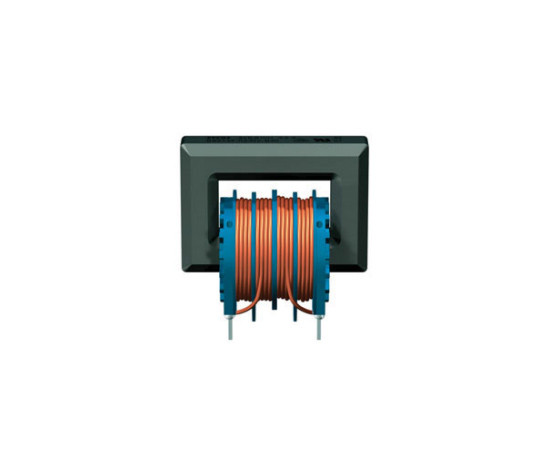

B82734R2232B030 TDK Power inductor

Symbol Micros: D B82734r2232b30

308257

D B82734r2232b30

Contractor Symbol:

Case : Rys.B82734R

Datasheet

Technical drawing Add to favourites

Power inductor; THT; 15mH; -30%,+50%; 2.3A; 185mR; dimensions: 32.5x21x31mm; operating temperature: -40°C~125°C

Parameters

Manufacturer:	TDK
Inductor type:	Power
Mounting:	THT
Inductance:	15mH
Current:	2,3A
Resistance:	0,185 Ohm
Tolerance:	-30%,+50%

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Manufacturer:	TDK
Inductor type:	Power
Mounting:	THT
Inductance:	15mH
Current:	2,3A
Resistance:	0,185 Ohm
Tolerance:	-30%,+50%
Operating temperature (range):	-40°C ~ 125°C
Dimensions:	32.5x21x31mm
