CAV-1.5-22 TALEMA Inductor

Symbol Micros: D CAV-1.5-22

52453

D CAV-1.5-22

Contractor Symbol:

Case : Rys.CAV-1.5-22

Datasheet

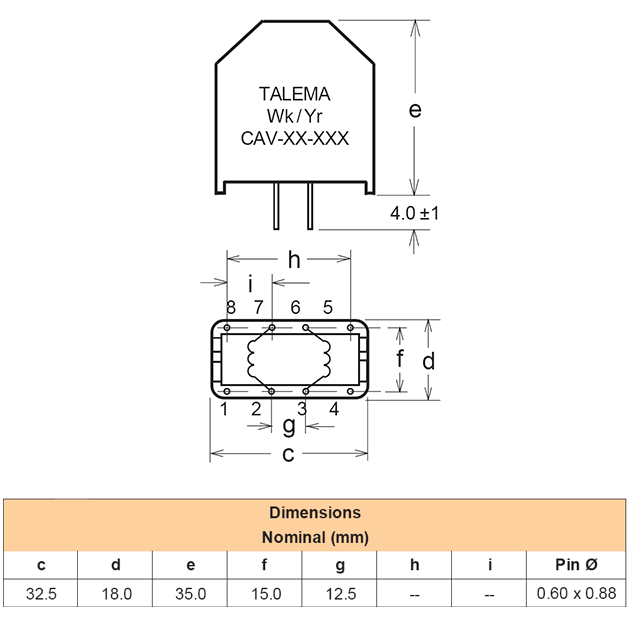

Technical drawing Add to favourites

Inductor wire; THT; 22mH; 30%; 1.5A; 227mR; no. of windings: 2; dimensions: 18x35mm; operating temperature: -40°C~125°C

Parameters

Manufacturer:	Talema
Inductor type:	Wire
Mounting:	THT
Inductance:	22mH
Current:	1,5A
Resistance:	227 mOhm
Operating temperature (range):	-40°C ~ 125°C

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Manufacturer:	Talema
Inductor type:	Wire
Mounting:	THT
Inductance:	22mH
Current:	1,5A
Resistance:	227 mOhm
Operating temperature (range):	-40°C ~ 125°C
Dimensions:	18x35mm
