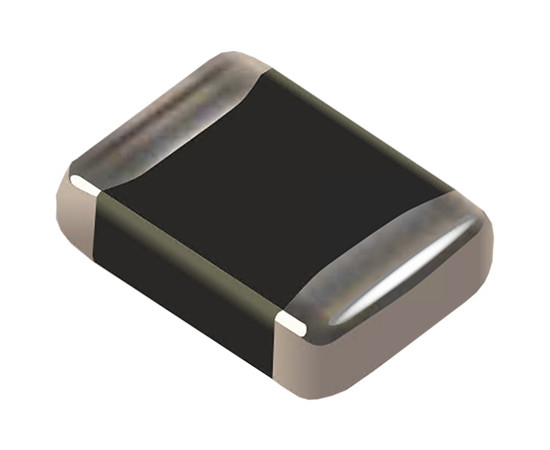

CVH252009-2R2M Bourns Power inductor

Symbol Micros: D CVH252009-002.2

123532

D CVH252009-002.2

Contractor Symbol:

Case : Rys.CVH252009

Datasheet

Technical drawing Add to favourites

SMD Power inductor; inductance: 2.2uH; 20%; current: 1,3A; resistance: 0,08R; dimensions: 2,5x2x1mm; operating temperature: -40°C ~ 105°C

Parameters

Manufacturer:	Bourns
Inductor type:	Power
Mounting:	SMD
Inductance:	2,2uH
Current:	1,3A
Resistance:	80 mOhm
Tolerance [%]:	20%

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Manufacturer:	Bourns
Inductor type:	Power
Mounting:	SMD
Inductance:	2,2uH
Current:	1,3A
Resistance:	80 mOhm
Tolerance [%]:	20%
Dimensions:	2.5x2x1mm
Operating temperature (range):	-40°C ~ 105°C
