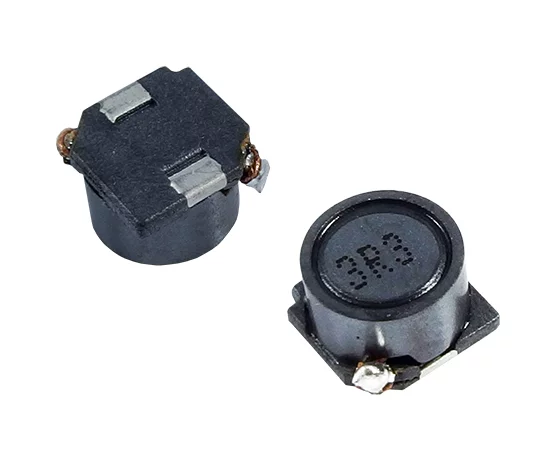

SMD Power inductor; 4.7uH

Symbol Micros: D DER0705-004.7

119144

D DER0705-004.7

Contractor Symbol:

Case : Rys.DER0705

Datasheet

Technical drawing Add to favourites

SMD Power inductor; inductance: 4.7uH; 20%; current: 2A; resistance: 0,033R; dimensions: 7.2x7.2x4.8mm; operating temperature: -40°C ~ 85°C

Parameters

Current:	2A
Dimensions:	7.2x7.2x4.8mm
Inductance:	4,7uH
Inductor type:	Power
Manufacturer:	N/A
Mounting:	SMD
Operating temperature (range):	-40°C ~ 85°C

All parameters

Manufacturer:: PASSIVE TECH Manufacturer part number:   Case style: Rys.DER0705

In stock:

0 pcs.

Quantity of pcs.	2+	10+	50+	200+	1000+
Net price (EUR)	0,4517	0,2747	0,2106	0,1902	0,1809

Add to comparison tool Add inquiry (RFQ)

Packaging:
1000 Quantity (multiple: 1)

- +

• Parameters

Current:	2A
Dimensions:	7.2x7.2x4.8mm
Inductance:	4,7uH
Inductor type:	Power
Manufacturer:	N/A
Mounting:	SMD
Operating temperature (range):	-40°C ~ 85°C
Resistance:	0,033 Ohm
Tolerance [%]:	20%
