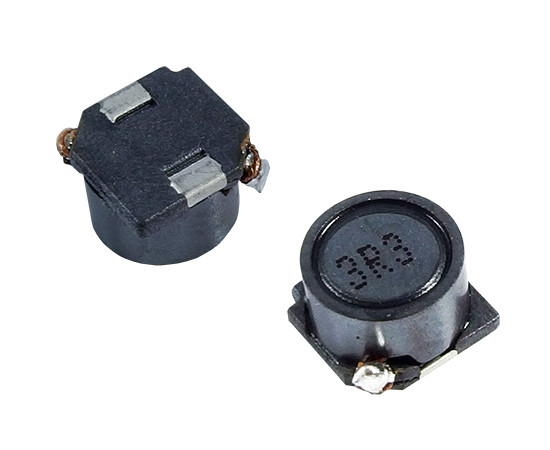

SMD Power Inductor; 820uH

Symbol Micros: D DER0705-820

123315

D DER0705-820

Contractor Symbol:

Case : Rys.DER0705

Datasheet

Technical drawing Add to favourites

SMD power inductor; inductance: 820uH; 20%; current: 0,19A; resistance: 3,25R; dimensions: 7.2x7.2x4.8mm; operating temperature: -40°C ~ 85°C

Parameters

Dimensions:	7.2x7.2x4.8mm
Inductance:	820uH
Inductor type:	Power
Manufacturer:	N/A
Mounting:	SMD
Current:	190mA
Resistance:	3,25 Ohm

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Dimensions:	7.2x7.2x4.8mm
Inductance:	820uH
Inductor type:	Power
Manufacturer:	N/A
Mounting:	SMD
Current:	190mA
Resistance:	3,25 Ohm
Operating temperature (range):	-40°C ~ 85°C
Tolerance:	20%
