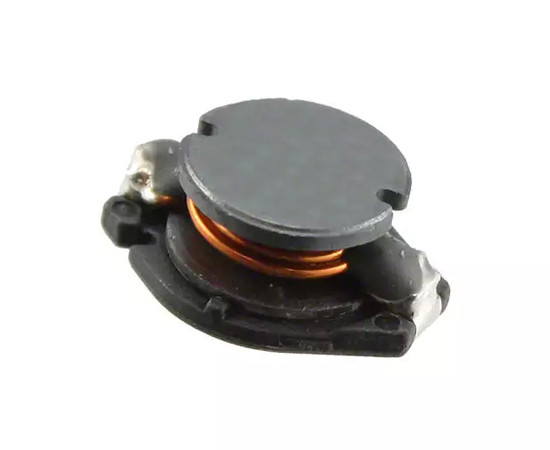

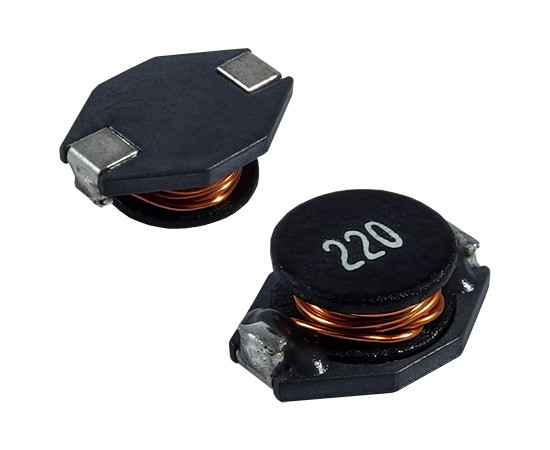

SMD Power inductor; 10uH

Symbol Micros: D DL22-10

55994

D DL22-10

Contractor Symbol:

Case : Rys.DL22

Datasheet

Technical drawing Add to favourites

SMD Power inductor; inductance: 10uH; 20%; current: 3.7A; resistance: 0.05R; dimensions: 13.5x10x5.2mm operating temperature: -25°C ~ 125°C; equivalent: D SDR1005-100ML

Parameters

Manufacturer:	N/A
Inductor type:	Power
Mounting:	SMD
Inductance:	10uH
Current:	3,7A
Resistance:	0,05 Ohm
Tolerance [%]:	20%

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Manufacturer:	N/A
Inductor type:	Power
Mounting:	SMD
Inductance:	10uH
Current:	3,7A
Resistance:	0,05 Ohm
Tolerance [%]:	20%
Dimensions:	13.5x10x5.2mm
Operating temperature (range):	-25°C ~ 125°C
