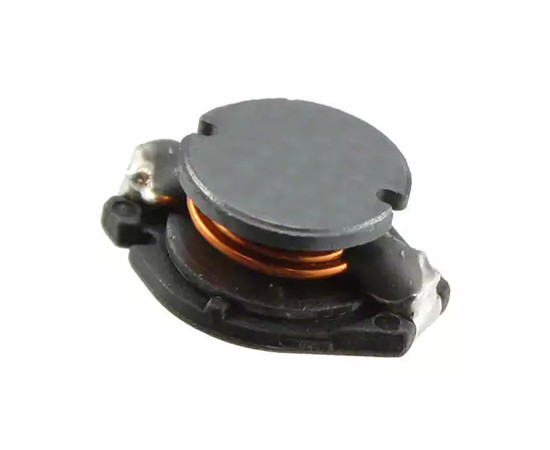

SMD Power Inductor; 3.3uH

Symbol Micros: D DL22-3.3

50321

D DL22-3.3

Contractor Symbol:

Case : Rys.DL22

Datasheet

Technical drawing Add to favourites

SMD power inductor; inductance: 3.3uH; 20%; current: 6.4A; resistance: 0.015R; dimensions: 13.5x10x5.2mm operating temperature: -25°C ~ 125°C; equivalent: D SDR1005-3R3ML

Parameters

Manufacturer:	N/A
Inductor type:	Power
Mounting:	SMD
Inductance:	3,3uH
Current:	6,4A
Resistance:	0,015 Ohm
Tolerance:	20%

All parameters

Manufacturer:: SSE Manufacturer part number:   Case style: Rys.DL22

In stock:

421 pcs.

Quantity of pcs.	3+	10+	30+	100+	480+
Net price (EUR)	0,4443	0,2891	0,2228	0,1890	0,1709

Add to comparison tool Add inquiry (RFQ)

Stock available
Until stock lasts Packaging:
480 Quantity (multiple: 1)

- +

• Parameters

Manufacturer:	N/A
Inductor type:	Power
Mounting:	SMD
Inductance:	3,3uH
Current:	6,4A
Resistance:	0,015 Ohm
Tolerance:	20%
Dimensions:	13.5x10x5.2mm
Operating temperature (range):	-25°C ~ 125°C
