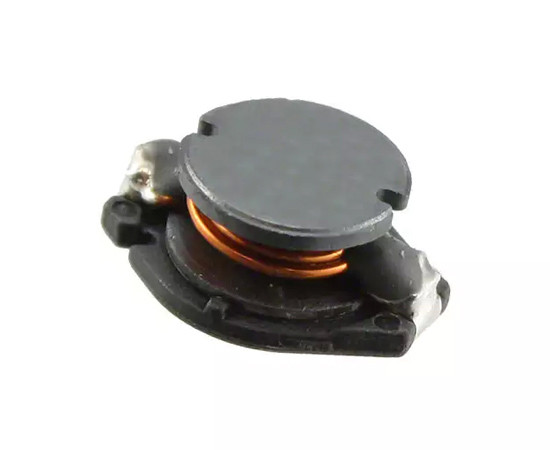

SMD Power Inductor; 4.7uH

Symbol Micros: D DL22-4.7
Contractor Symbol:
Case : Rys.DL22
Technical drawing Add to favourites
SMD power inductor; inductance: 4.7uH; 20%; current: 5.4A; resistance: 0.019R; dimensions: 13.5x10x5.2mm; operating temperature: -25°C ~ 125°C; equivalent: D SDR1005-4R7ML
Parameters
Dimensions: 13.5x10x5.2mm
Inductance: 4,7uH
Inductor type: Power
Manufacturer: N/A
Mounting: SMD
Current: 5,4A
Resistance: 0,019 Ohm


Item available on request
Dimensions: 13.5x10x5.2mm
Inductance: 4,7uH
Inductor type: Power
Manufacturer: N/A
Mounting: SMD
Current: 5,4A
Resistance: 0,019 Ohm
Operating temperature (range): -25°C ~ 125°C
Tolerance: 20%
