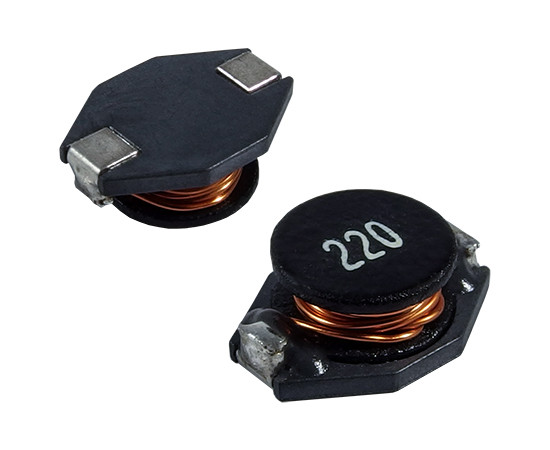

SMD Power inductor; 470uH

Symbol Micros: D DL22-470

55998

D DL22-470

Contractor Symbol:

Case : Rys.DL22

Datasheet

Technical drawing Add to favourites

SMD Power inductor; inductance: 470uH; 20%; current: 0.5A; resistance: 1.7R; dimensions: 13.5x10x5.2mm; operating temperature: -25°C ~ 125°C; equivalent: D SDR1005-471KL

Parameters

Current:	0,5A
Dimensions:	13.5x10x5.2mm
Inductance:	470uH
Inductor type:	Power
Manufacturer:	N/A
Mounting:	SMD
Operating temperature (range):	-25°C ~ 125°C

All parameters

Manufacturer:: SSE Manufacturer part number:   Case style: Rys.DL22

In stock:

300 pcs.

Quantity of pcs.	3+	15+	75+	375+	375+
Net price (EUR)	0,3595	0,2116	0,1604	0,1429	0,1797

Add to comparison tool Add inquiry (RFQ)

Stock available
Until stock lasts Packaging:
375 Quantity (multiple: 1)

- +

Manufacturer:: SSE Manufacturer part number:   Case style: Rys.DL22

In stock:

950 pcs.

Quantity of pcs.	3+	20+	100+	300+	1000+
Net price (EUR)	0,3890	0,2148	0,1688	0,1563	0,1499

Add to comparison tool Add inquiry (RFQ)

Stock available
Until stock lasts Packaging:
1000 Quantity (multiple: 1)

- +

Manufacturer:: SSE Manufacturer part number:   Case style: Rys.DL22

In stock:

750 pcs.

Quantity of pcs.	3+	20+	100+	500+	1000+
Net price (EUR)	0,3595	0,1982	0,1558	0,1411	0,1383

Add to comparison tool Add inquiry (RFQ)

Stock available
Until stock lasts Packaging:
500/1000 Quantity (multiple: 1)

- +

• Parameters

Current:	0,5A
Dimensions:	13.5x10x5.2mm
Inductance:	470uH
Inductor type:	Power
Manufacturer:	N/A
Mounting:	SMD
Operating temperature (range):	-25°C ~ 125°C
Resistance:	1,7 Ohm
Tolerance [%]:	20%
