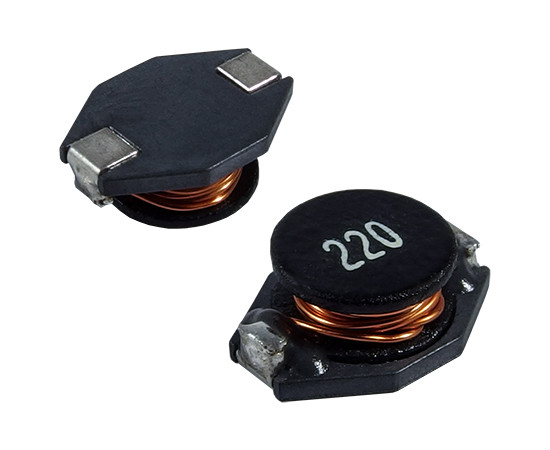

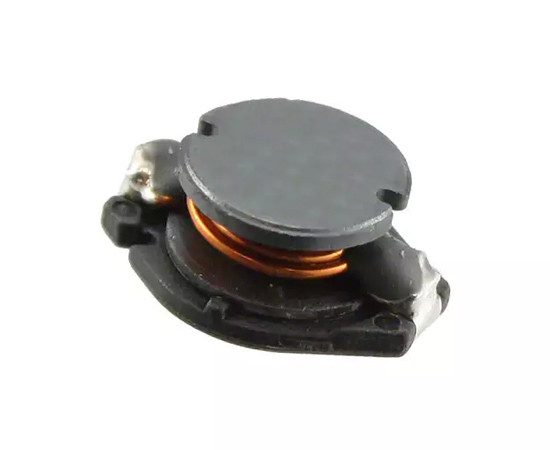

SMD Power inductor; 68uH

Symbol Micros: D DL22-68

66986

D DL22-68

Contractor Symbol:

Case : Rys.DL22

Datasheet

Technical drawing Add to favourites

SMD Power inductor; inductance: 68uH; 20%; current: 1.4A; resistance: 0.24R; dimensions: 13.5x10x5.2mm; operating temperature: -25°C ~ 125°C; equivalent: D SDR1005-680KL

Parameters

Current:	1,4A
Dimensions:	13.5x10x5.2mm
Inductance:	68uH
Inductor type:	Power
Manufacturer:	N/A
Mounting:	SMD
Operating temperature (range):	-25°C ~ 125°C

All parameters

Manufacturer:: PASSIVE TECH Manufacturer part number:   Case style: Rys.DL22

In stock:

1070 pcs.

Quantity of pcs.	2+	10+	50+	200+	1000+
Net price (EUR)	0,4905	0,2976	0,2285	0,2062	0,1962

Add to comparison tool Add inquiry (RFQ)

Packaging:
1000 Quantity (multiple: 1)

- +

• Parameters

Current:	1,4A
Dimensions:	13.5x10x5.2mm
Inductance:	68uH
Inductor type:	Power
Manufacturer:	N/A
Mounting:	SMD
Operating temperature (range):	-25°C ~ 125°C
Resistance:	240 mOhm
Tolerance [%]:	20%
