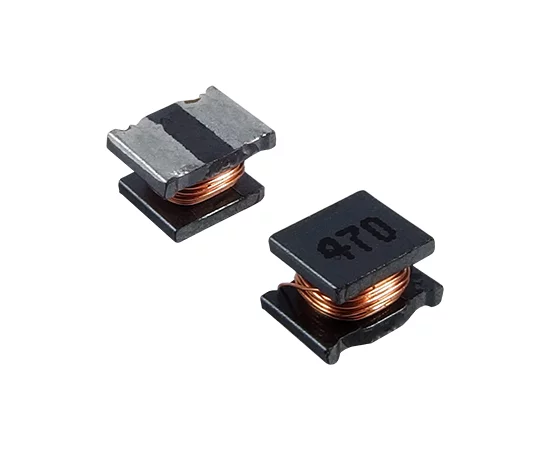

SMD Power inductor; 22uH

Symbol Micros: D DL4N-22

121713

D DL4N-22

Contractor Symbol:

Case : Rys.DL4N

Datasheet

Technical drawing Add to favourites

SMD Power inductor; inductance: 22uH; 20%; current: 860mA; resistance: 546mR; dimensions: 4.5x3.2x2.6mm

Parameters

Current:	0,86A
Dimensions:	4.5x3.2x2.6mm
Inductance:	22uH
Inductor type:	Power
Manufacturer:	N/A
Mounting:	SMD
Resistance:	0,546 Ohm

All parameters

Manufacturer:: PASSIVE TECH Manufacturer part number:   Case style: Rys.DL4N

In stock:

1270 pcs.

Quantity of pcs.	3+	20+	100+	500+	2000+
Net price (EUR)	0,3209	0,1783	0,1410	0,1279	0,1238

Add to comparison tool Add inquiry (RFQ)

Packaging:
500/4000 Quantity (multiple: 1)

- +

• Parameters

Current:	0,86A
Dimensions:	4.5x3.2x2.6mm
Inductance:	22uH
Inductor type:	Power
Manufacturer:	N/A
Mounting:	SMD
Resistance:	0,546 Ohm
Tolerance [%]:	20%
